● European-standard design with CE certification, ensuring reliable functionality and safety.

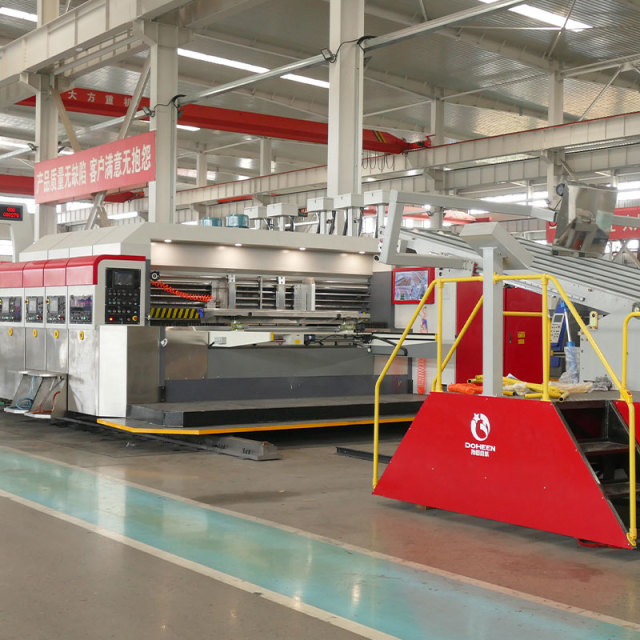

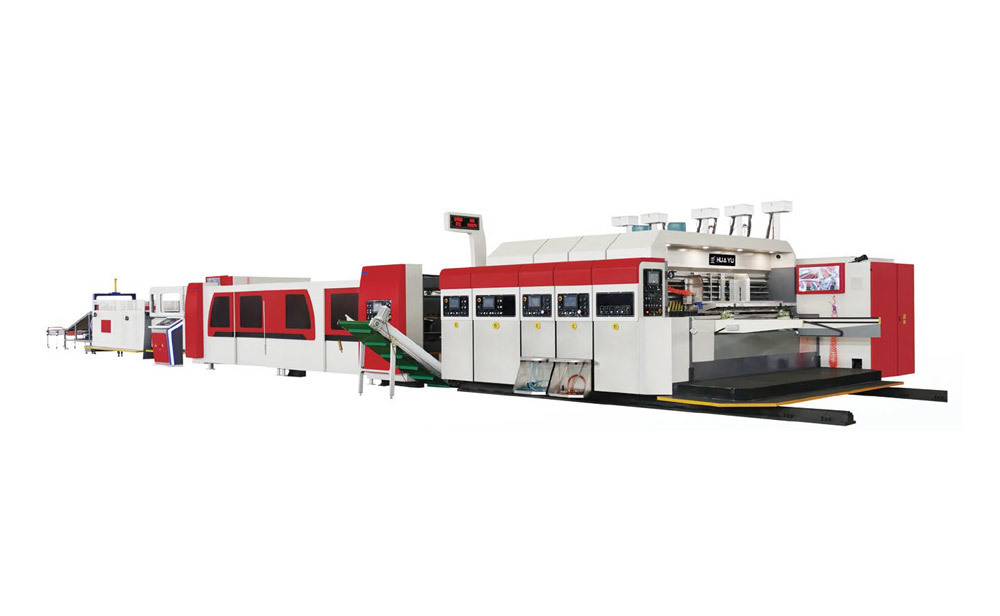

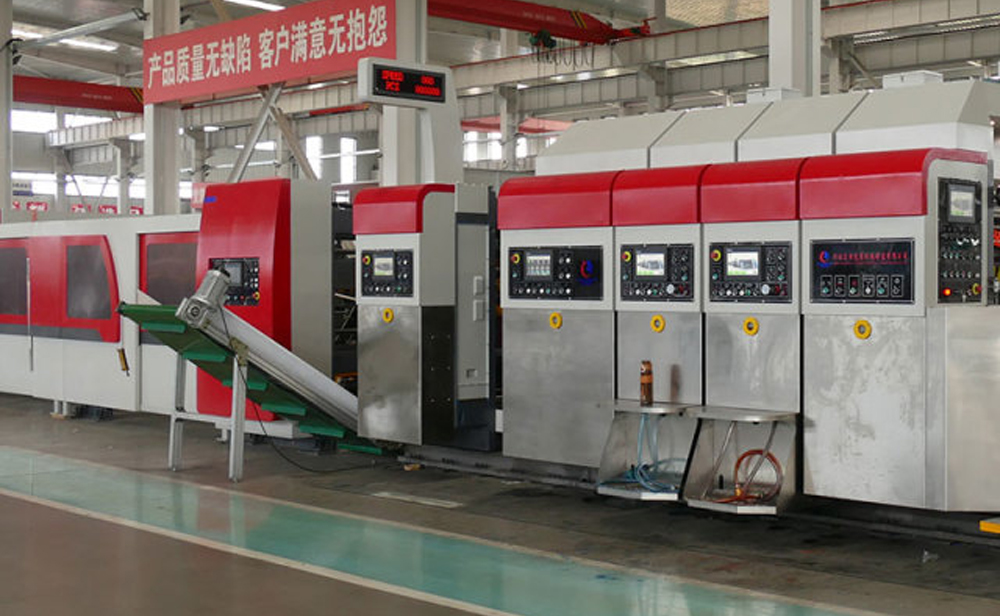

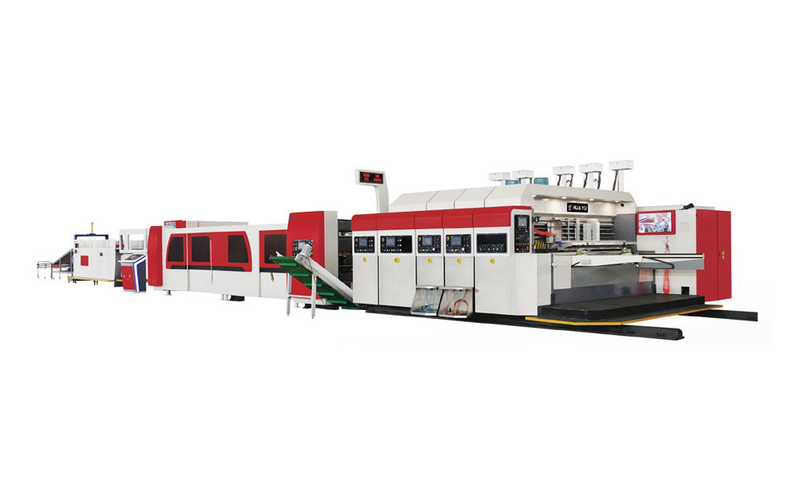

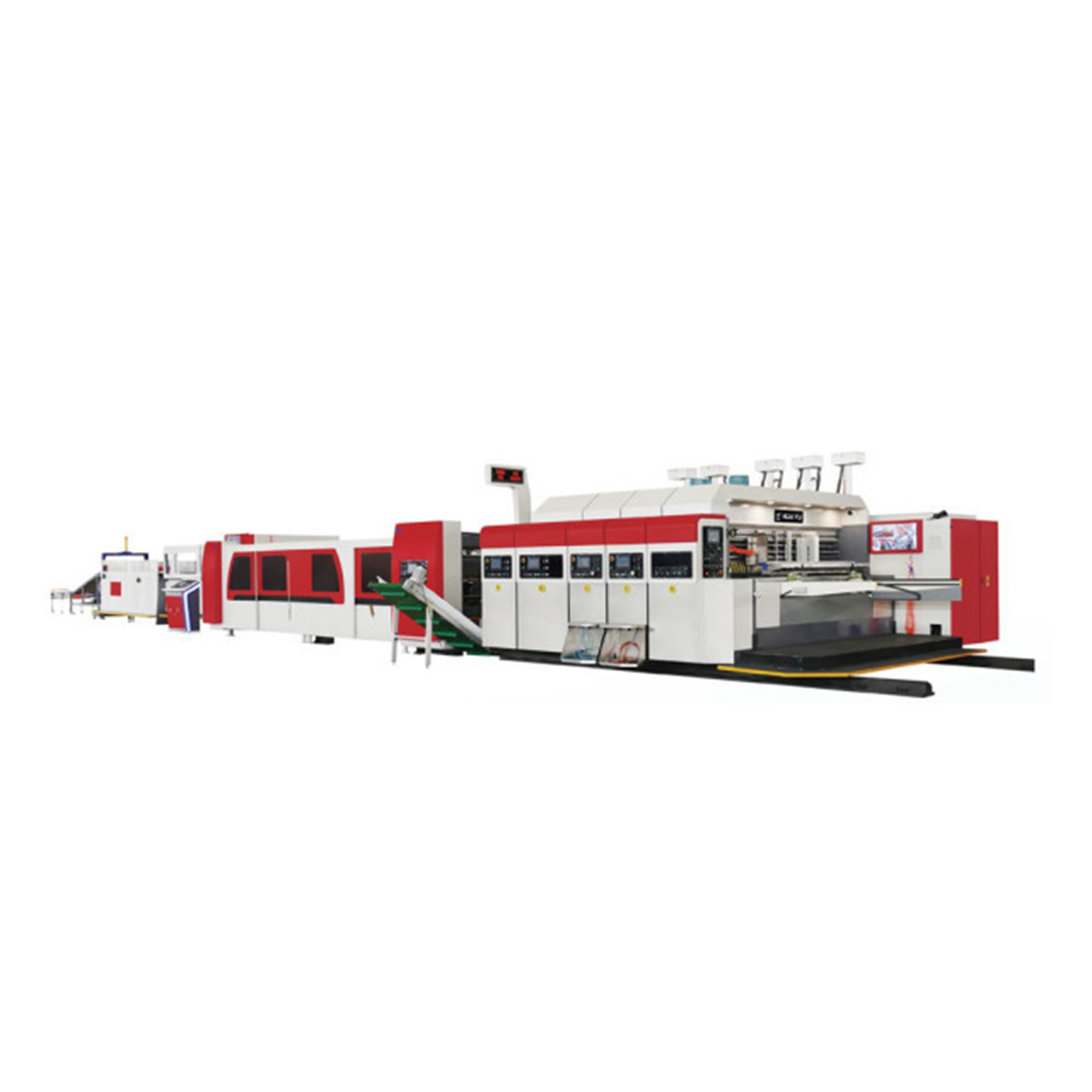

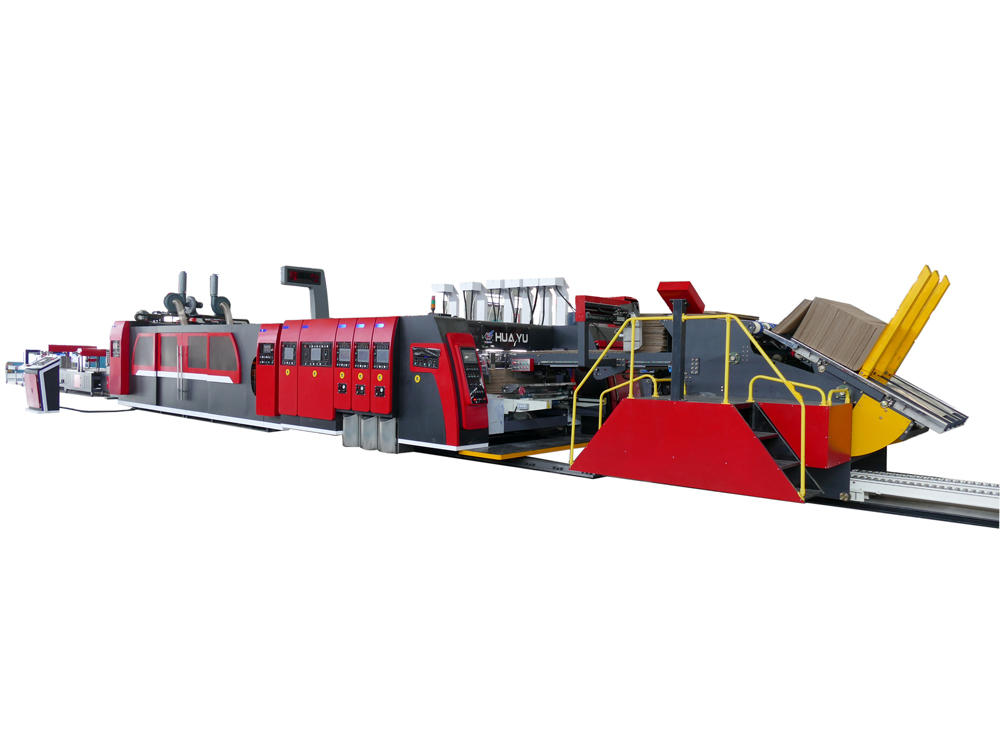

● High-definition corrugated printing machine, designed to replace some offset printing. Unlike traditional offset (pre-printing, lamination, flat pressing, die-cutting), it completes printing, drying, slotting, and die-cutting in one pass at 180 sheets/min, with high precision, high efficiency, and eco-friendly ink. The adsorption down-printing structure keeps images clean and simplifies waste removal—ideal for premium packaging.
● Fully automatic production control system – input order size on the touch screen, and the feeder, printer, and die-cutter automatically adjust all gaps and parameters. Accurate, reliable, and efficient with no manual intervention.
● Order memory & auto change – stores multiple jobs, enabling faster and easier order switching.
● Independent unit control with full vacuum transfer feeder for ±0.3mm registration accuracy.
● Networked management with optional remote maintenance (internet required).
● Dust removal system in feeder: static eliminator, 8-row brush, strong suction, and adhesive roller for maximum dust removal.
● High-precision alloy steel gears (carburized, quenched, ground) ensure durability and stability.
● Japanese imported bearings (THK, NSK, NTN) and world-class electricals (Siemens, Schneider, AirTac).
● Imported ceramic anilox rollers with open doctor blade system.
● 50–133 LPI printing capability for coated or kraft paper, with scraper ink supply.
● Advanced vacuum box with oil-cup roller bearings, 7.5KW centrifugal fan, frequency-controlled airflow, ensuring smooth feeding of thin, curved, or low-grade cardboard. Pneumatic air adjustment for different sheet sizes.
● Infrared + UV drying system – IR for water-based varnish, UV for UV varnish, ensuring quality at high speed.
● Durable painting process (derusting, phosphating, painting, baking) for rust resistance and hardness.
● Large display board shows speed (sheets/min) and output quantity for easy monitoring.
● Central dust collection & noise reduction with pulse bag filter, configurable per user needs.
● All electrical, electronic, pneumatic parts comply with CE standards.

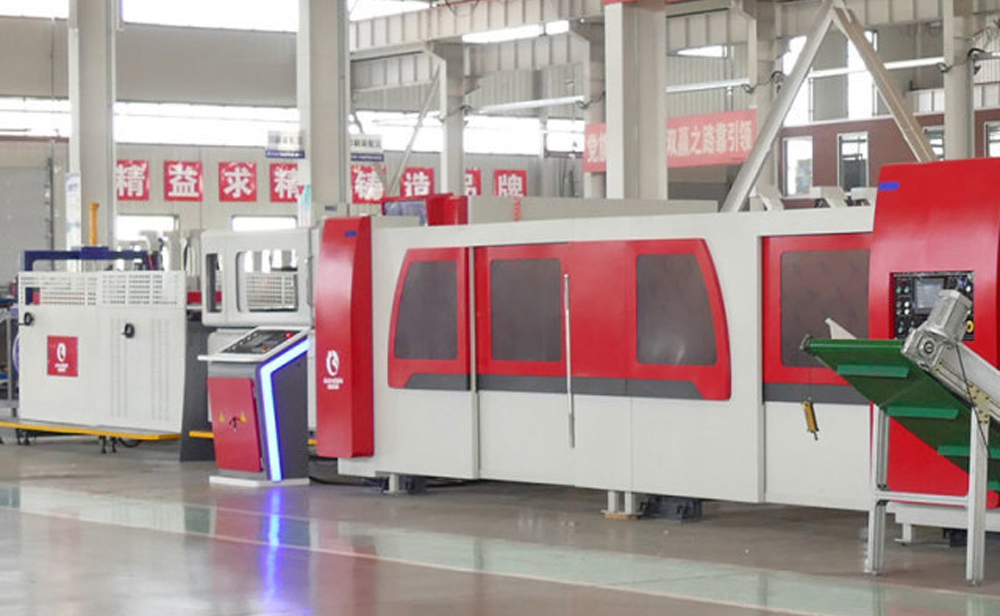

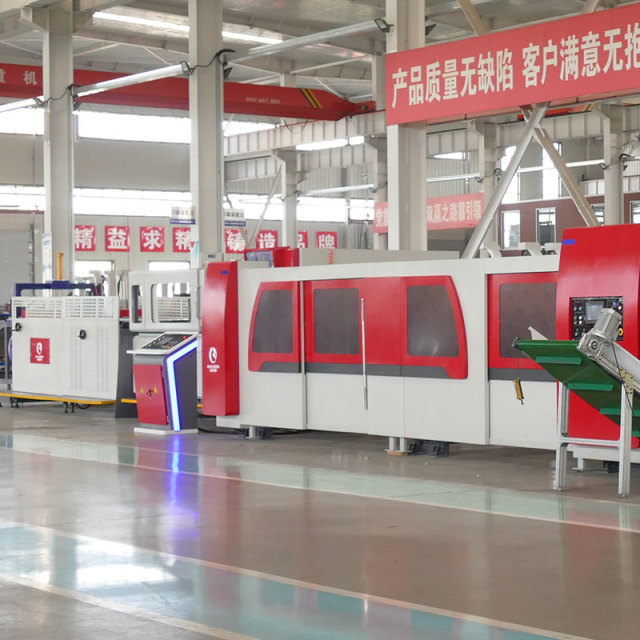

● Inline gluing with top folding structure for large packaging needs.
● Independent servo drive transmission tracks main engine speed for synchronized adjustment.
● Servo correction system in folding with forming wheels and adsorption transport ensures box forming accuracy, preventing open seams or scissor opening.
● Correction section with flapping, calibrating, counting, and delivery for easier downstream packaging.
● Horizontally adjustable correction section, adaptable for different offset cartons.
Model | 1628X | 1632X |
Speed | 180 | 150 |
Min. Feeding size | 420X680 | 420X680 |
Max. Continuous paper size |
1540X2880 |
1540X3280 |
| Max. Printing size | 1580X2760 | 1580X2760 |
| Suitable cardboard thickness | 2-9 | 2-9 |
Standard printing plate thickness | 7.2 | 7.2 |
Computerized slot spacing
| Positive knife 165x165Reserve knife 265x65 | Positive knife 165x165Reserve knife 265x65 |
Max. Die cutter size
| 1600X2880 | 1600X3280 |
| Min . slot box height | 90 | 90 |
Max. Slot depth
| 410 | 410 |
Printing roll position adjustment
| ±6 | ±6 |
| Left and right lateraldisplacement of anvil pad | ±20 | ±20 |
| Die cutter knife height | 25.4 | 25.4 |
| Feeder accuracy | ±1 | ±1 |
| Topping accuracy | ±0.3 | ±0.3 |
| Slotter accuracy | ±1.5 | ±1.5 |
Die cutter accuracy
| ±1 | ±1 |
| Min.Folding spacing | 400 | 400 |
| Side sheet | Min 200 Max1005 | Min 200 Max1225 |
| Sheet reserve side | Min 250 Max 1100 | Min 250
Max 1300 |
Folding accuracy
| ±2 | ±2 |
| Min paper feeding height | 400 | 400 |
| Speed | 160 | 150 |
| Product Display

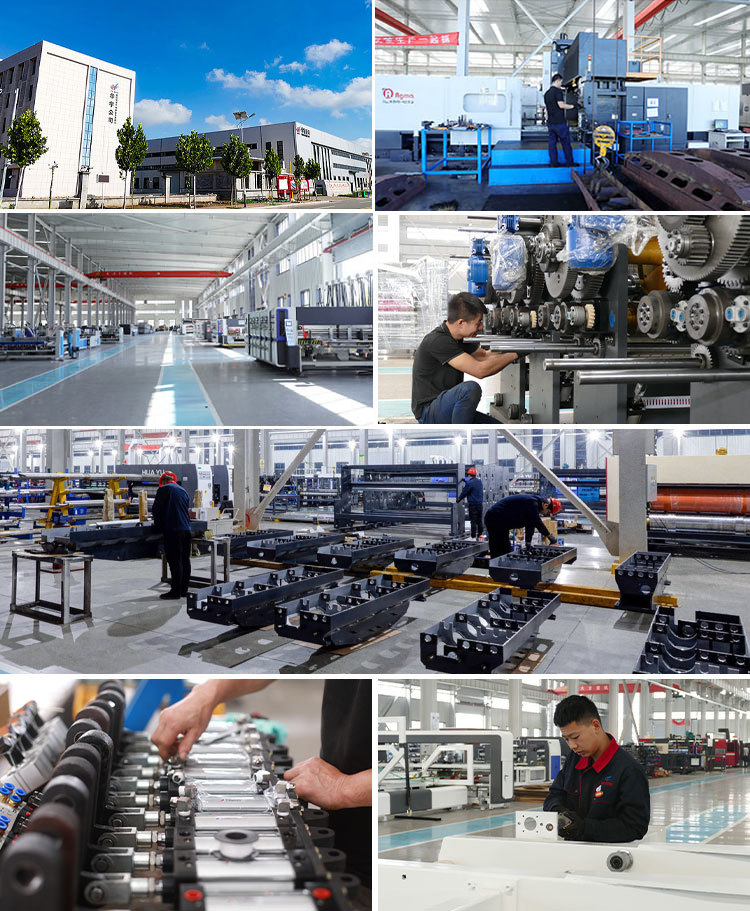

| Production Line
| Hot Sales
| Certificate
The company has been rated as "high-tech enterprise", "Cangzhou enterprise technology center" and "National Science and technology small and medium-sized enterprises". The company has won the honors of "China Quality AAA brand enterprise", "China's key promotion brand of scientific and technological innovation", "trustworthy unit of consumers", "advanced export unit" and "enterprise abiding by contract and trustworthiness".
The company has established a sound quality management system and obtained iso9001:2015 international quality management system certification and EU CE certification.
| Packaging And Shipping
| Huayu Service
QUALITY/QUANTITY DISCREPANCY AND CLAlM
1. ln case the quality and/ or quantity are found by the user to be not in conformity with the contract after arrival of the goods at the port of destination, the user may lodge claim with the seller supported by a survey report issued by an inspection organization agreed upon by both parties, with the exception, however, of those claims for which the insurance company and/or the shipping company are to be held responsible.
2. The claims should be filed by the user within 30 days after the arrival of the goods at the port of destination.
WARRANTIES
1. All the equipment supplied by the seller shall be of good quality, brand new and free of defect, in accordance with design and specification.
2. The warranty period is 1 year after sign the act of acceptance between the seller and user.
3. Duration Of Warranty:
Seller's obligation shall commence on the effective date and continue through the period ending 1 year after sign the act of acceptance. Within the indicated time seller shall make good or replace by his force and on his account defective/worm block, parts or any parts thereof, spare parts which do not allow to normally utilize the equipment and produce amounts intended. Replaced defective parts.
4. Installation Services:
After customer get all machines we will arrange engineers to oversea to install the machine (the specific installation time depends on the local conditions).
5. When there is a problem with the machine or the customer cannot operate the machine, we will immediately give the customer's solution and video to help the customer run the machine.
