● Advanced adsorption leading-edge paper feeding system, easy to operate with high precision.

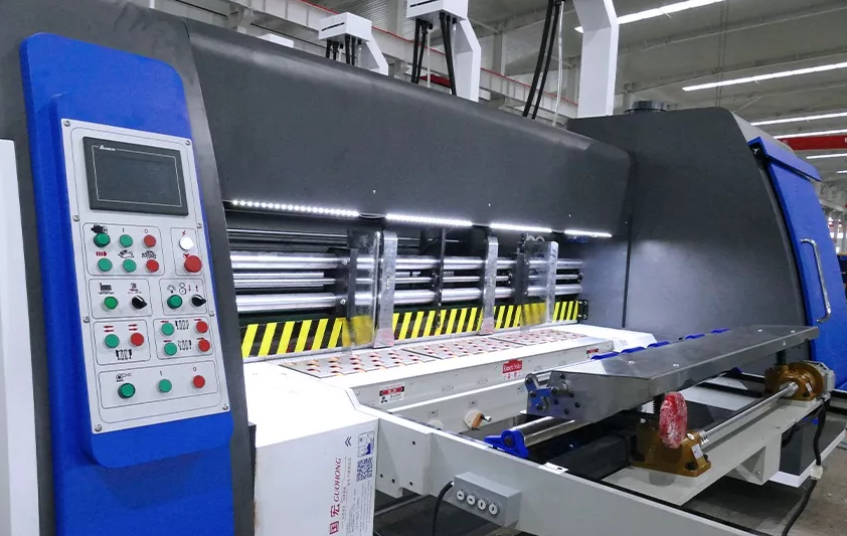

● 7-inch true-color touch screen – preset up to 200 orders, order query, zero-order input, machine reset to zero, automatic/manual phase adjustment, parameter management, manual/automatic plate lifting and ink distribution. Displays production quantity and speed, and allows production quantity setting.

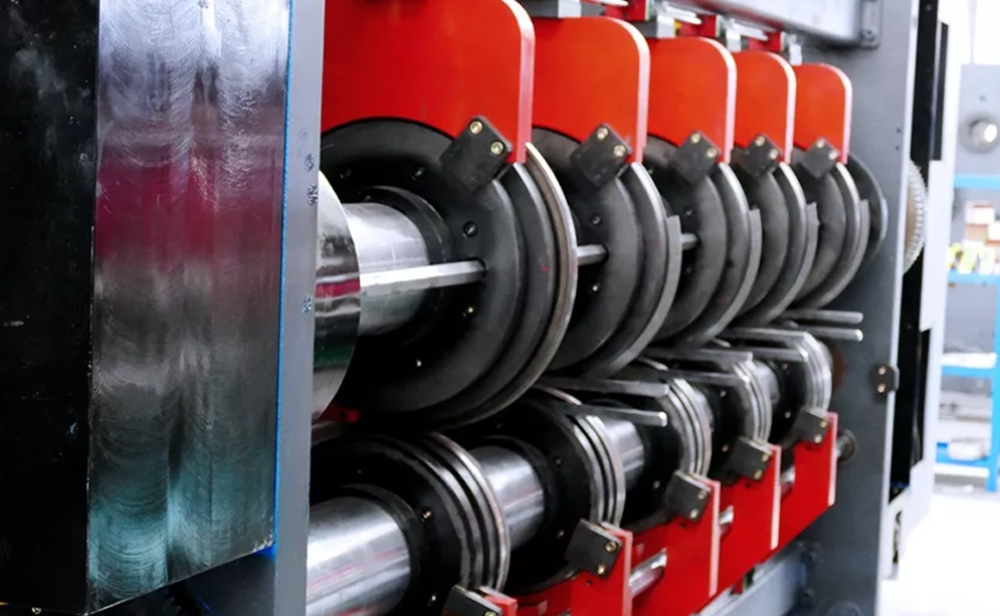

● Rotating rollers made of high-quality steel, hard-chrome plated and precision-ground. Rotating gears made of high-quality alloy steel, heat-treated and ground.
● Gap adjustment uses high-precision turbo box with self-locking system, equipped with a three-bar disc handle seat for quick and convenient operation.

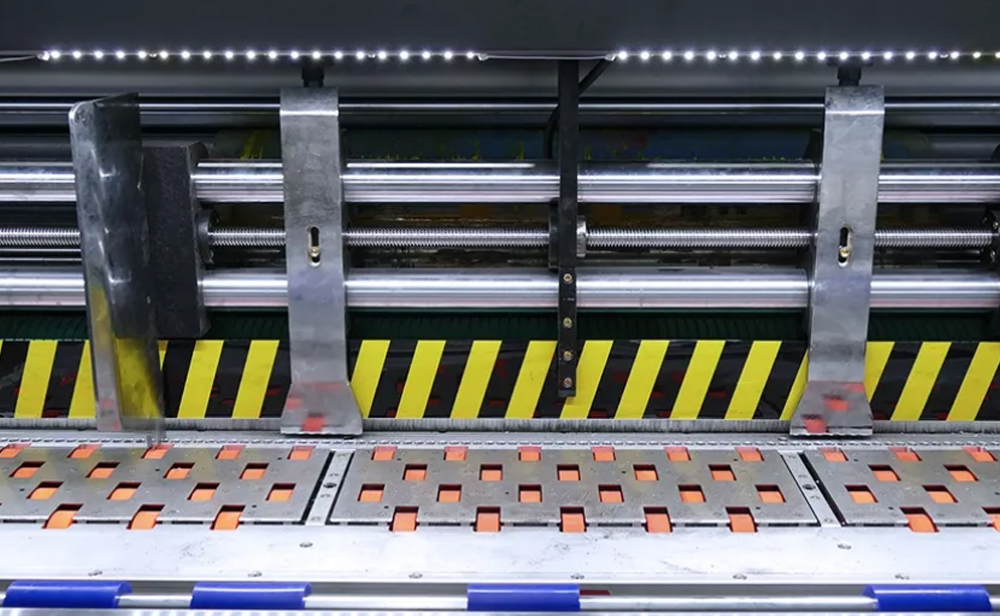

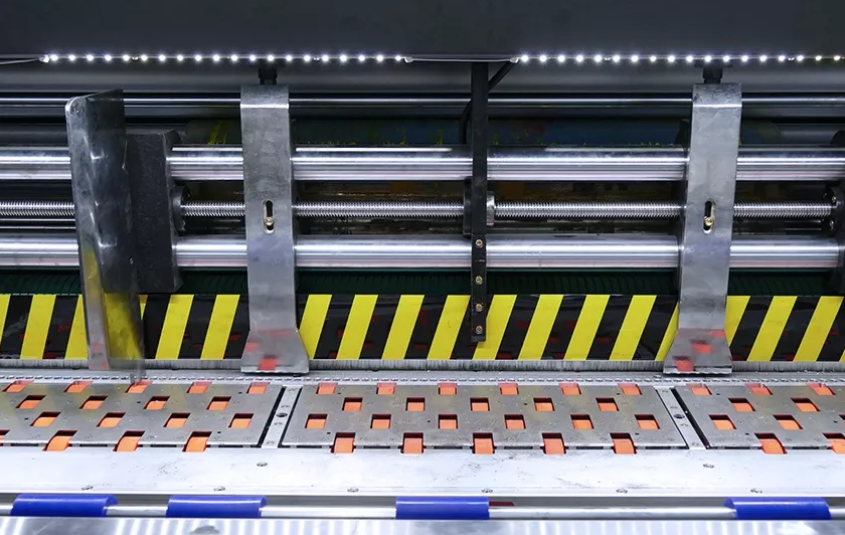

● Slotting section with electric control to adjust axial, longitudinal, and height dimensions of each tool seat.

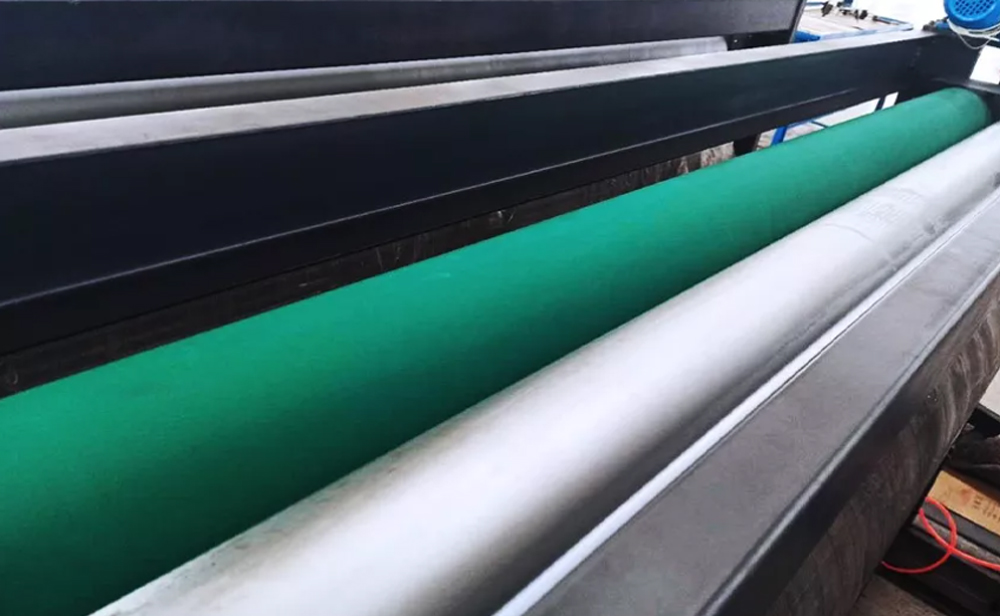

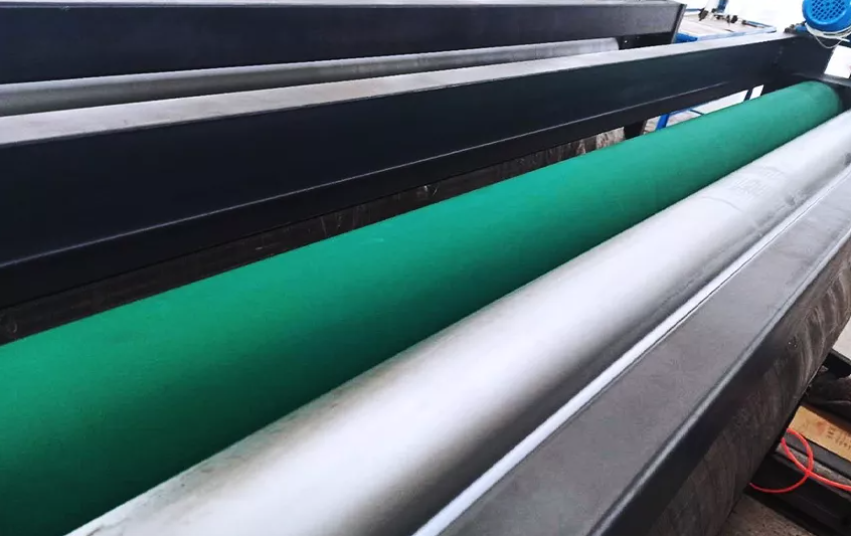

● Die-cutting speed compensation system – cam-type soft roller with 40mm lateral travel, ensuring even wear of rubber pad, improving utilization, and reducing costs.
● Applicable for 3/5/7-ply corrugated and E-flute cardboard.
Model | Unit | 920 | 1224 | 1424 | 1628 |
Max. Speed | m/min | 240 | 200 | 180 | 140 |
Max. Paper Size | mm | 900X2150 | 1200X2550 | 420X680 | 420X680 |
Max. Printing Size |
mm |
860X2000 |
1160X2400 |
1400X2400 |
1580X2800 |
| Skipping Feeding Size | mm | 1100X2150 | 1500X2550 | 1700X2550 | 1900X2950 |
| Topping Precision | Pcs/min | ±0.5 | ±0.5 | ±0.5 | ±0.5 |
Cardboard Thickness | mm | 1.5-9 | 1.5-10 | 1.5-10 | 1.5-10 |
Min. Slotting Interval |
mm | Positive Knife 140x140 | Positive Knife 160x160 | Positive Knife 160x160 | Positive Knife 160x160 |
| Counter Knife 245x60 | Counter Knife 265x65 | Counter Knife 265x65 | Counter Knife 265x65 |
| Max. Slotting Depth | mm | 230 | 320 | 350 | 400 |
| Min. Paper Size | mm | 280X630 | 350X690 | 380X720 | 420X730 |
| Product Display
| Production Line
| Hot Sales
| Certificate
The company has been rated as "high-tech enterprise", "Cangzhou enterprise technology center" and "National Science and technology small and medium-sized enterprises". The company has won the honors of "China Quality AAA brand enterprise", "China's key promotion brand of scientific and technological innovation", "trustworthy unit of consumers", "advanced export unit" and "enterprise abiding by contract and trustworthiness".
The company has established a sound quality management system and obtained iso9001:2015 international quality management system certification and EU CE certification.
| Packaging And Shipping
| Huayu Service
QUALITY/QUANTITY DISCREPANCY AND CLAlM
1. ln case the quality and/ or quantity are found by the user to be not in conformity with the contract after arrival of the goods at the port of destination, the user may lodge claim with the seller supported by a survey report issued by an inspection organization agreed upon by both parties, with the exception, however, of those claims for which the insurance company and/or the shipping company are to be held responsible.
2. The claims should be filed by the user within 30 days after the arrival of the goods at the port of destination.
WARRANTIES
1. All the equipment supplied by the seller shall be of good quality, brand new and free of defect, in accordance with design and specification.
2. The warranty period is 1 year after sign the act of acceptance between the seller and user.
3. Duration Of Warranty:
Seller's obligation shall commence on the effective date and continue through the period ending 1 year after sign the act of acceptance. Within the indicated time seller shall make good or replace by his force and on his account defective/worm block, parts or any parts thereof, spare parts which do not allow to normally utilize the equipment and produce amounts intended. Replaced defective parts.
4. Installation Services:
After customer get all machines we will arrange engineers to oversea to install the machine (the specific installation time depends on the local conditions).
5. When there is a problem with the machine or the customer cannot operate the machine, we will immediately give the customer's solution and video to help the customer run the machine.
