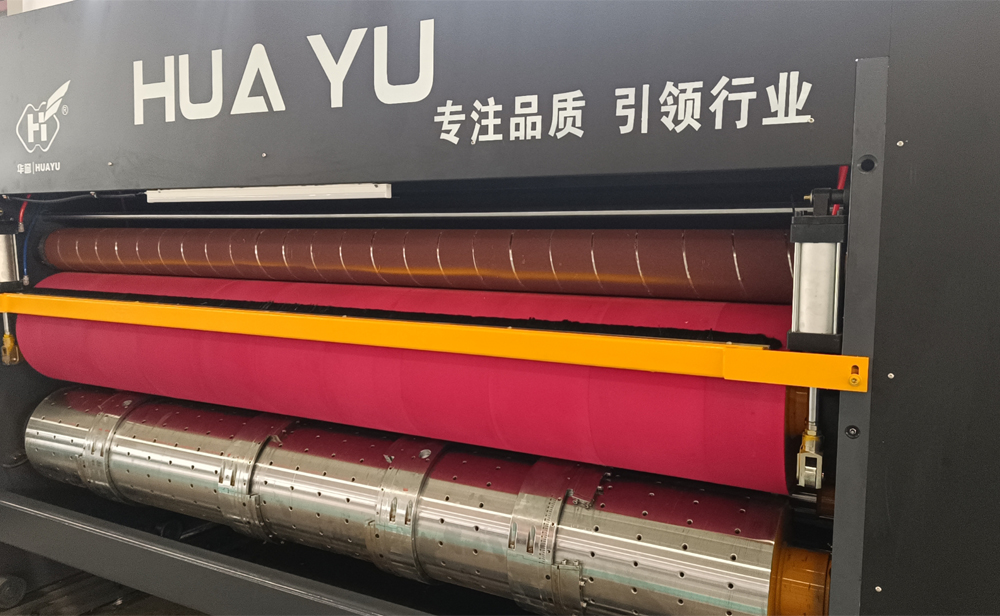

● Roller-shaft printing with a well-structured design for easy adjustment and clear observation of the printing surface.
● Adjustable leading-edge feeding with electronic stroke control reduces pressure on the rubber feed roller.

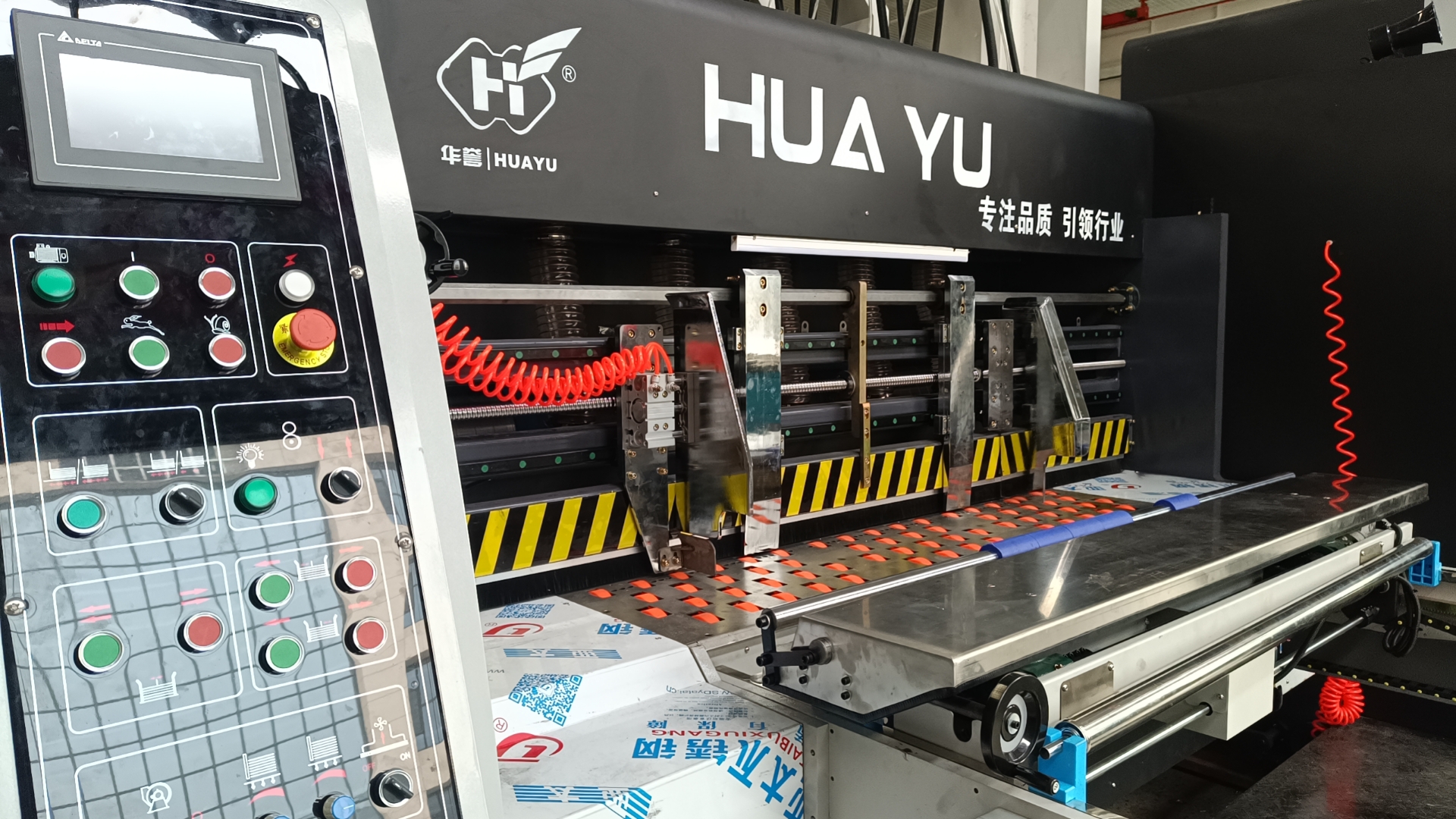

● Touch screen PLC control with auto counting, speed display, plate lift/lower, phase adjustment, and order storage.
● Plate cleaning memory – after cleaning stops, auto memory reset eliminates retesting.
● Host start protection – machine cannot start unless ground lock is activated, preventing misoperation.
● Premium electrical components from Siemens, Schneider, Omron, etc.
● Mobile combination structure with electric reducer drive; continuous bell alert for operator safety; pneumatic wedge-type auto locking.
● Variable-frequency main drive for energy savings.
● High-quality steel transmission rollers – quenched, tempered, hard-chrome plated, and precision-ground.
● Main transmission gears (20CrMnTi alloy steel, heat-treated & ground, grade-6 precision) with expansion-sleeve shaft connection.
● Bearings from trusted brands such as Harbin, Luoyang, Wafangdian.
● Passive rollers driven by high-precision bearing cross-slider mechanism.
● Separate operator station & shield for easier gearbox maintenance.
● Oil-pump lubrication system with auto oil-level balancing across gear units.
● Pneumatic brakes ensure reset accuracy of meshing point and phase after separation.
● Paper feeding gap dial with dual-pole parallel worm gearbox self-locking adjustment.
● Three-position planetary gear mechanism for phase control, brake-motor driven, with dedicated phase meter and reset-to-zero memory.
● Emergency stop switches for enhanced safety.
● Zero-setting device for quick plate adjustment.
● Multi-phase control for easier and more flexible operation.
Model | 920 | 924 | 1224 | 1228 | 1424 | 1428 | 1624 |
Speed | 260 | 210 | 220 | 180 | 180 | 150 | 160 |
Min. Feeding size | 160X560 | 260X560 | 320X680 | 320X680 | 345X680 | 345X680 | 365X680 |
Max.Continuousfeeding size |
800X2080 |
860X2150 |
860X2250 |
1160X2550 |
1370X2550 |
1370X2950 |
1540X2550 |
| Max. Printing size | 860X1960 | 860X2360 | 1170X2360 | 1170X2760 | 1400X2360 | 1400X2760 | 1580X2360 |
| Skip feeding | 1100X2150 | 1100X2550 | 1500X2550 | 1500X2950 | 1700X2550 | 1700X2950 | 1900X2550 |
Standard printing plate thickness | 2-10 | 2-10 | 2-11 | 2-11 | 2-11 | 2-11 | 2-11 |
Computerized slot spacing | Positive knife 130X130Reserve knife 245X60 | Positive knife 130x130Reserve knife 245x60 | Positive knife 160x160Reserve knife 260x65 | Positive knife 160x160Reserve knife 260x65 | Positive knife 160x160Reserve knife 260x65 | Positive knife 165x165Reserve knife 265x65 | Positive knife 165x165Reserve knife 265x65 |
Max. Die cutting size
| 880X2080 | 800X2480 | 1200X2480 | 1200X2880 | 1420X2480 | 1420X2880 | 1600X2480 |
| Min . slot box height of slotter | 105 | 105 | 95 | 95 | 90 | 90 | 90 |
Max. Slot depth
| 230 | 230 | 310 | 310 | 365 | 365 | 410 |
Printing roll position adjustment
| ±6 | ±6 | ±6 | ±6 | ±6 | ±6 | ±6 |
| Left and right lateral displacement of anvil pad | ±20 | ±20 | ±20 | ±20 | ±20 | ±20 | ±20 |
| Die cutter knife height | 25.4 | 25.4 | 25.4 | 25.4 | 25.4 | 25.4 | 25.4 |
| Feeding accuracy | ±1 | ±1 | ±1 | ±1 | ±1 | ±1 | ±1 |
| topping accuracy | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 |
| Slotter accuracy | ±1.5 | ±1.5 | ±1.5 | ±1.5 | ±1.5 | ±1.5 | ±1.5 |
Die cutter accuracy
| ±1 | ±1 | ±1 | ±1 | ±1 | ±1 | ±1 |
| Product Display
| Production Line
| Hot Sales
| Certificate
The company has been rated as "high-tech enterprise", "Cangzhou enterprise technology center" and "National Science and technology small and medium-sized enterprises". The company has won the honors of "China Quality AAA brand enterprise", "China's key promotion brand of scientific and technological innovation", "trustworthy unit of consumers", "advanced export unit" and "enterprise abiding by contract and trustworthiness".
The company has established a sound quality management system and obtained iso9001:2015 international quality management system certification and EU CE certification.
| Packaging And Shipping
| Huayu Service
QUALITY/QUANTITY DISCREPANCY AND CLAlM
1. ln case the quality and/ or quantity are found by the user to be not in conformity with the contract after arrival of the goods at the port of destination, the user may lodge claim with the seller supported by a survey report issued by an inspection organization agreed upon by both parties, with the exception, however, of those claims for which the insurance company and/or the shipping company are to be held responsible.
2. The claims should be filed by the user within 30 days after the arrival of the goods at the port of destination.
WARRANTIES
1. All the equipment supplied by the seller shall be of good quality, brand new and free of defect, in accordance with design and specification.
2. The warranty period is 1 year after sign the act of acceptance between the seller and user.
3. Duration Of Warranty:
Seller's obligation shall commence on the effective date and continue through the period ending 1 year after sign the act of acceptance. Within the indicated time seller shall make good or replace by his force and on his account defective/worm block, parts or any parts thereof, spare parts which do not allow to normally utilize the equipment and produce amounts intended. Replaced defective parts.
4. Installation Services:
After customer get all machines we will arrange engineers to oversea to install the machine (the specific installation time depends on the local conditions).
5. When there is a problem with the machine or the customer cannot operate the machine, we will immediately give the customer's solution and video to help the customer run the machine.
