● European-standard design, reliable and safe, fully CE certified.

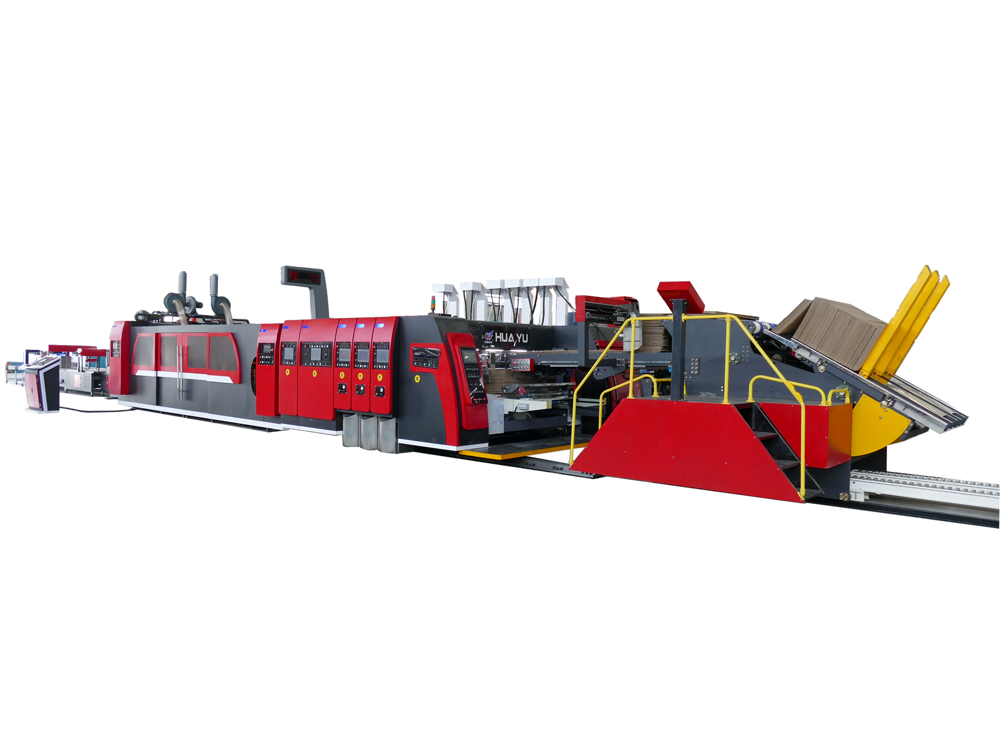

● High-definition corrugated printing line – replaces offset printing with one-pass printing, coating, drying, slotting & die-cutting at 200 sheets/min.
● Eco-friendly water-based/UV inks, avoiding solvent emissions and protecting workers & environment – ideal for food & beverage packaging.
● PLC touch screen control – fast response, easy order input & adjustment without stopping.
● Automatic size & gap adjustment across feeder, printing, and die-cutting units; no manual setup needed.
● Job memory & auto changeover, faster and more convenient order switching.
● Independent unit control with full vacuum transfer feeder, ensuring ±0.3mm registration accuracy.
● Advanced dust removal system with static eliminator, 8-row brush, strong suction & adhesive roller for clean surfaces.
● High-precision alloy steel gears (carburized & ground) for durability and stable operation.
● Imported premium components: Japanese bearings (THK, NSK, NTN) and global brands (Siemens, Schneider, AirTac).
● Ceramic anilox rollers + open doctor blade system for consistent ink transfer (50–133 LPI high/low printing).
● Vacuum box with 7.5KW centrifugal fan & frequency-controlled airflow – stable feeding of thin or curved cardboard.
● Infrared & UV drying system with temperature control for water-based or UV varnish, ensuring high-quality prints at high speed.
● Top folding & gluing unit for large packaging, with servo-driven synchronization for accuracy.
● Folding section with servo correction, forming wheels & adsorption transport – stable, precise box forming.
● Automatic counting, stacking & delivery system with pneumatic mode and adjustable output.
● Central dust collection & noise reduction, customizable with pulse bag filter.
Model | 920G | 1224G | 1628G |
Speed | 250 | 200 | 150 |
Min. Feeding size | 300X560 | 360X680 | 420X680 |
Max. Continuous paper size |
800X2080 |
1160X2480 |
1540X2280 |
| Max. Printing size | 860X1960 | 1125X2350 | 1535X2750 |
| Suitable cardboard thickness | 2-9 | 2-9 | 2-9 |
Standard printing plate thickness | 7.2 | 7.2 | 7.2 |
Computerized slot spacing
| Positive knife 130X130Reserve knife 245X60 | Positive knife 160x160Reserve knife 260x65 | Positive knife 165x165Reserve knife 265x65 |
Max. Die cutter size
| 880X2080 | 1200X2480 | 1600X2880 |
| Min . slot box height | 105 | 95 | 90 |
Max. Slot depth
| 230 | 310 | 410 |
Printing roll position adjustment
| ±6 | ±6 | ±6 |
| Left and right lateraldisplacement of anvil pad | ±20 | ±20 | ±20 |
| Die cutter knife height | 25.4 | 25.4 | 25.4 |
| Feeder accuracy | ±1 | ±1 | ±1 |
| Printing accuracy | ±0.3 | ±0.3 | ±0.3 |
| Slotting accuracy | ±1.5 | ±1.5 | ±1.5 |
Die cutter accuracy
| ±1 | ±1 | ±1 |

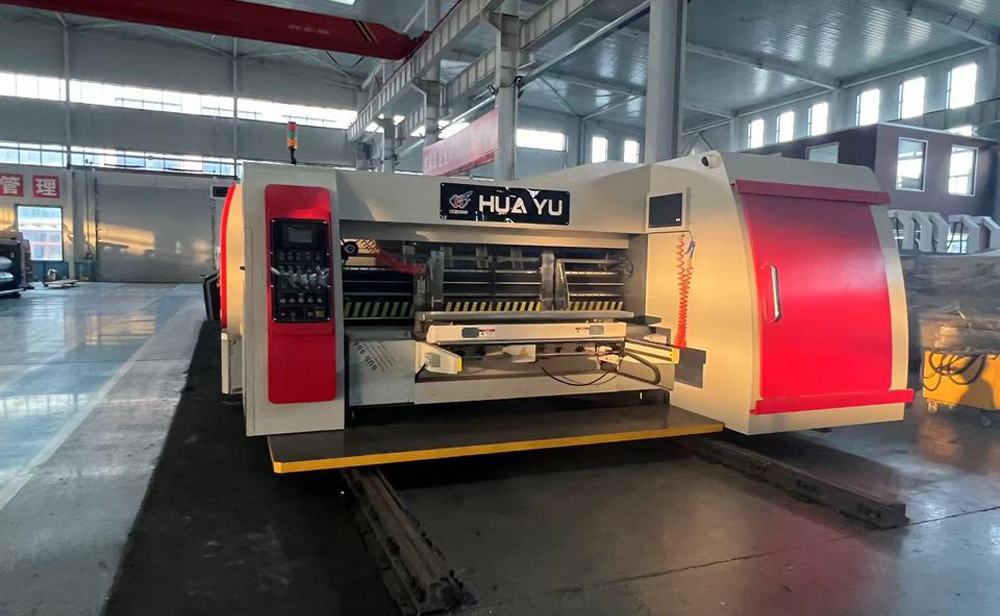

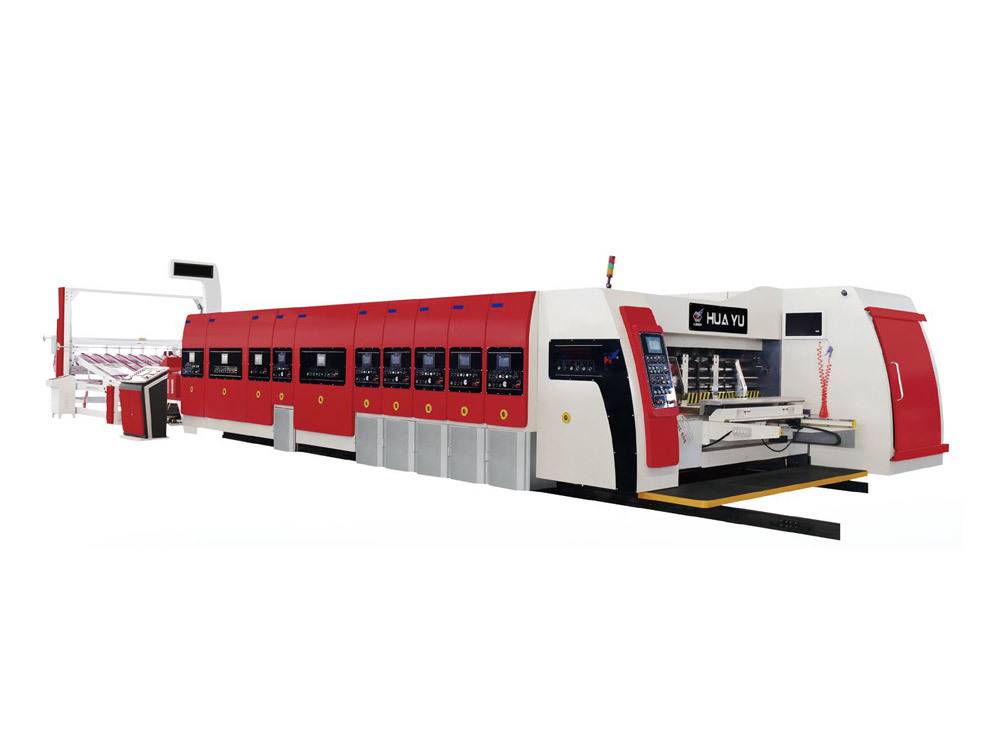

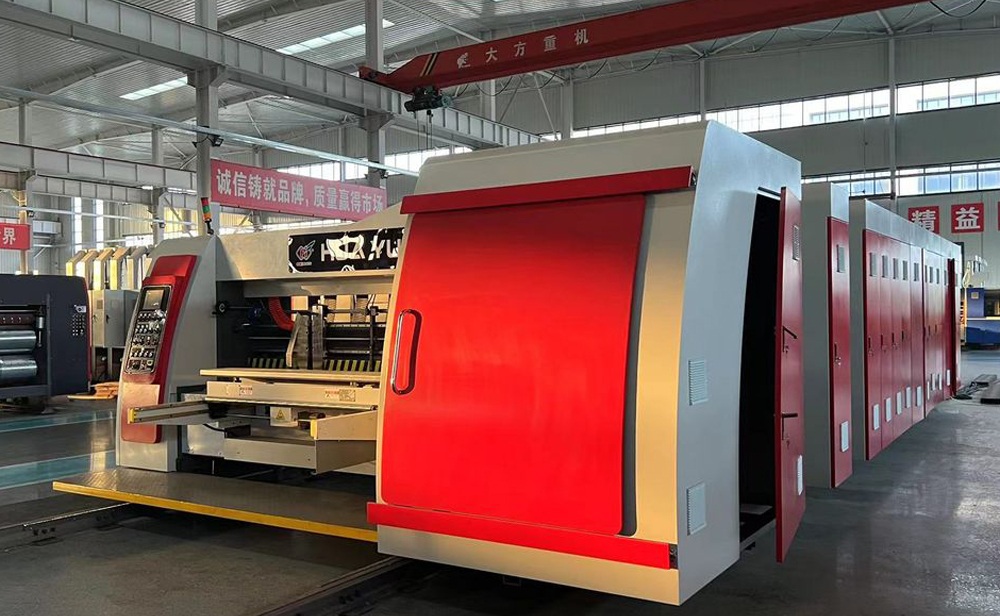

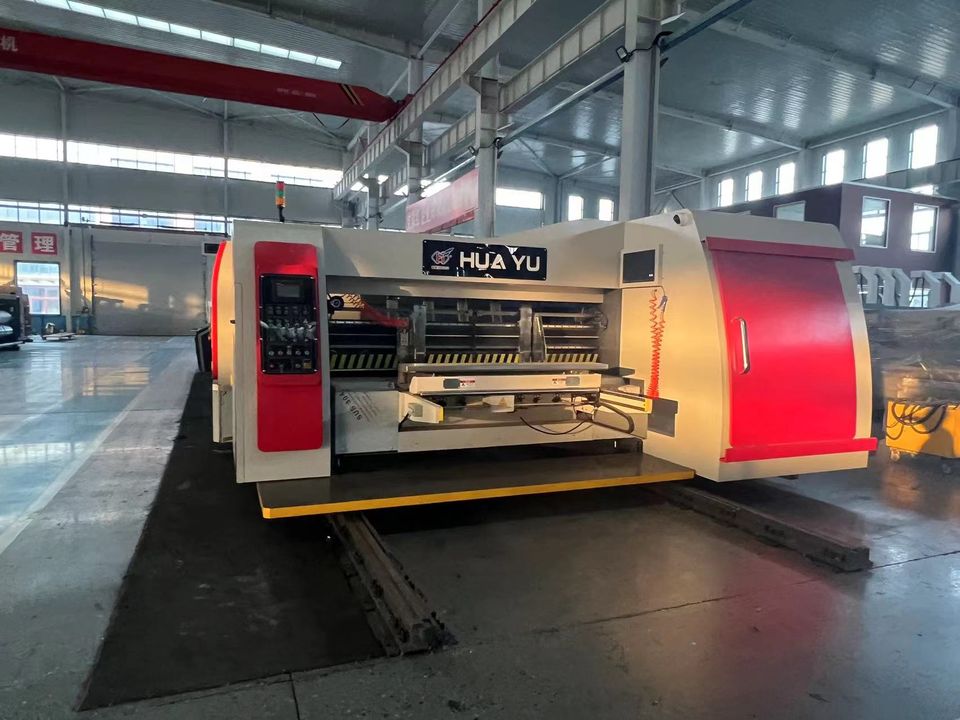

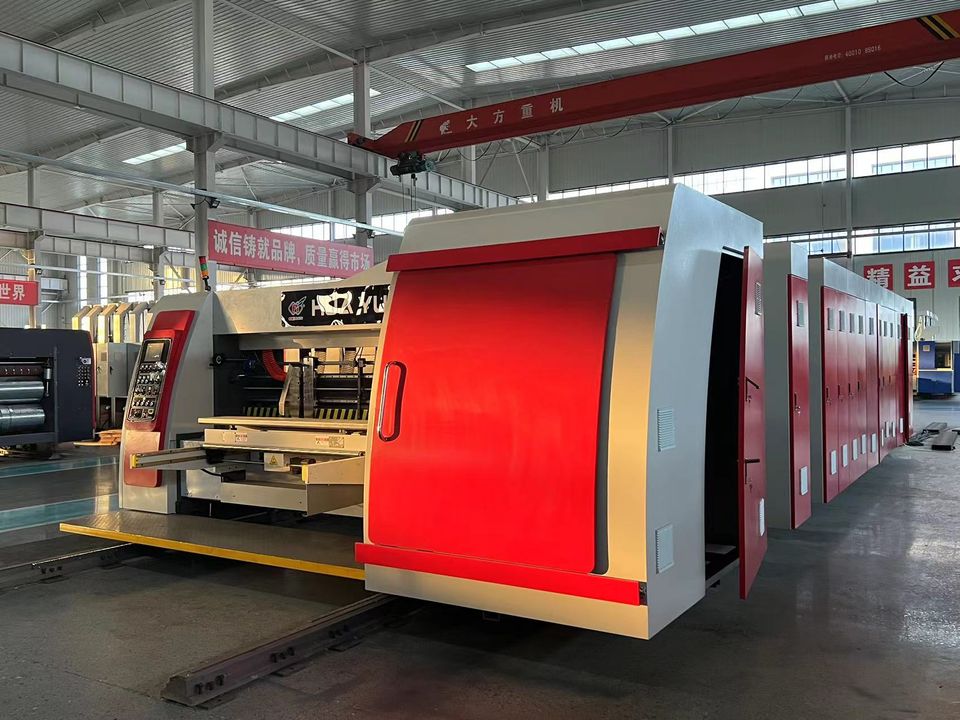

| Product Display

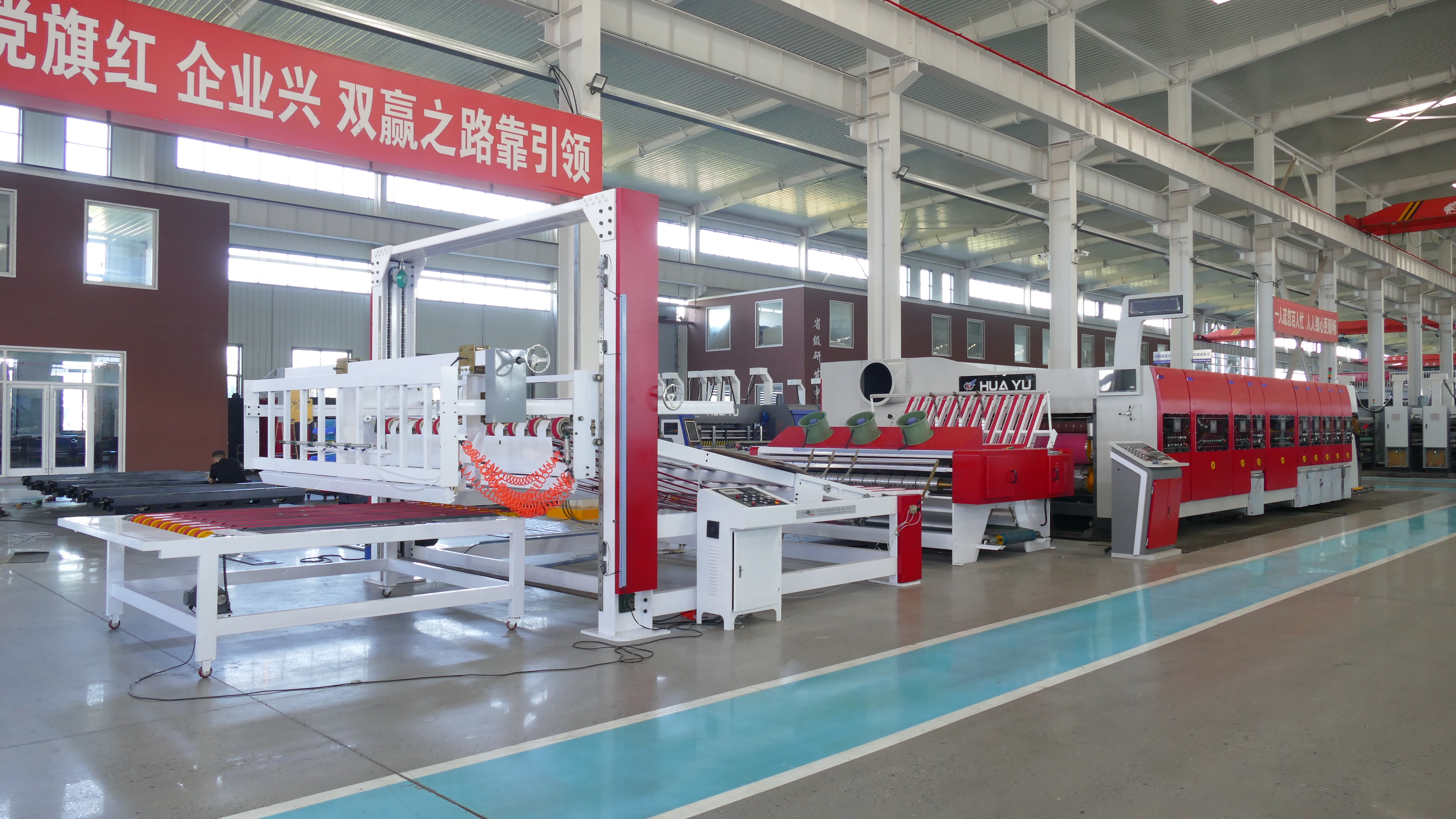

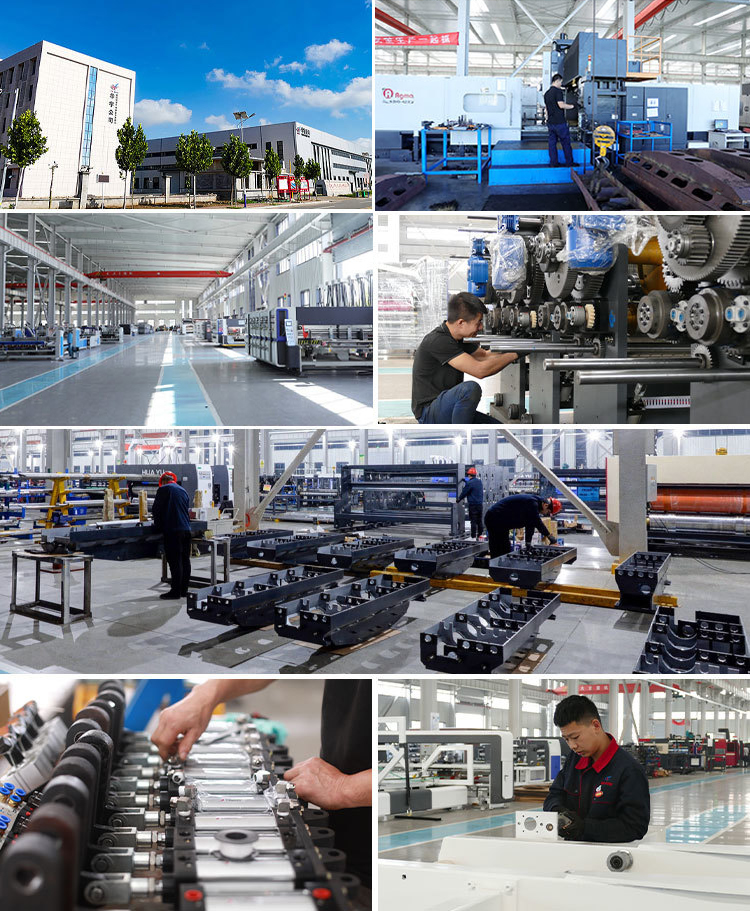

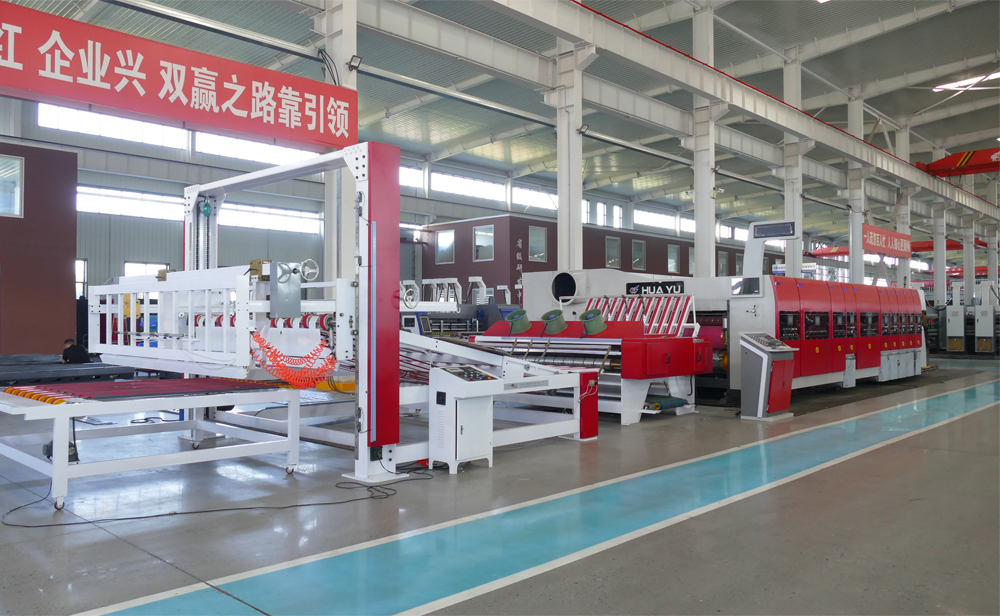

| Production Line

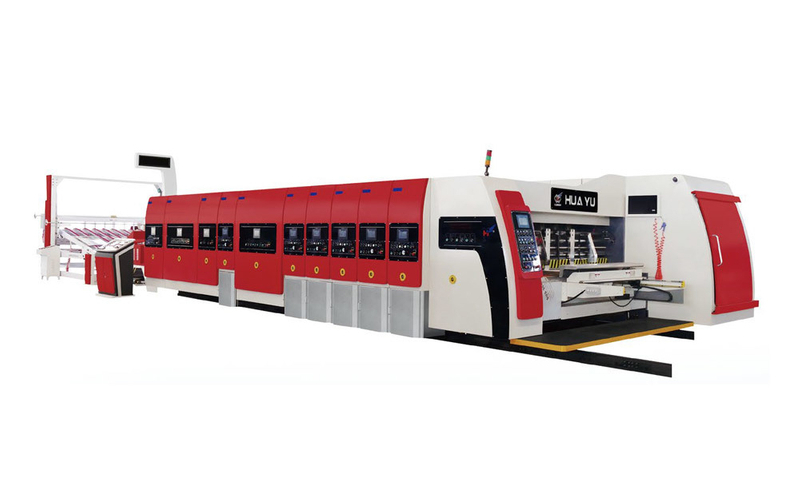

| Hot Sales
| Certificate
The company has been rated as "high-tech enterprise", "Cangzhou enterprise technology center" and "National Science and technology small and medium-sized enterprises". The company has won the honors of "China Quality AAA brand enterprise", "China's key promotion brand of scientific and technological innovation", "trustworthy unit of consumers", "advanced export unit" and "enterprise abiding by contract and trustworthiness".
The company has established a sound quality management system and obtained iso9001:2015 international quality management system certification and EU CE certification.
| Packaging And Shipping
| Huayu Service
QUALITY/QUANTITY DISCREPANCY AND CLAlM
1. ln case the quality and/ or quantity are found by the user to be not in conformity with the contract after arrival of the goods at the port of destination, the user may lodge claim with the seller supported by a survey report issued by an inspection organization agreed upon by both parties, with the exception, however, of those claims for which the insurance company and/or the shipping company are to be held responsible.
2. The claims should be filed by the user within 30 days after the arrival of the goods at the port of destination.
WARRANTIES
1. All the equipment supplied by the seller shall be of good quality, brand new and free of defect, in accordance with design and specification.
2. The warranty period is 1 year after sign the act of acceptance between the seller and user.
3. Duration Of Warranty:
Seller's obligation shall commence on the effective date and continue through the period ending 1 year after sign the act of acceptance. Within the indicated time seller shall make good or replace by his force and on his account defective/worm block, parts or any parts thereof, spare parts which do not allow to normally utilize the equipment and produce amounts intended. Replaced defective parts.
4. Installation Services:
After customer get all machines we will arrange engineers to oversea to install the machine (the specific installation time depends on the local conditions).
5. When there is a problem with the machine or the customer cannot operate the machine, we will immediately give the customer's solution and video to help the customer run the machine.
