● Designed to European standards, ensuring reliable performance and safety, fully CE certified.

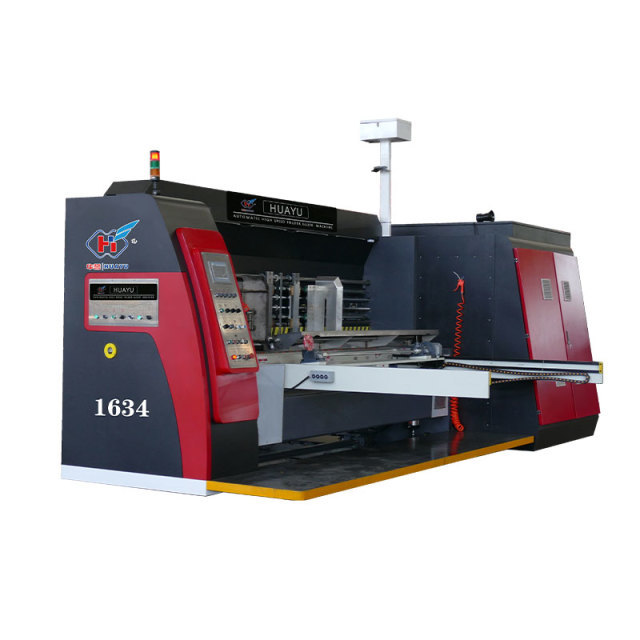

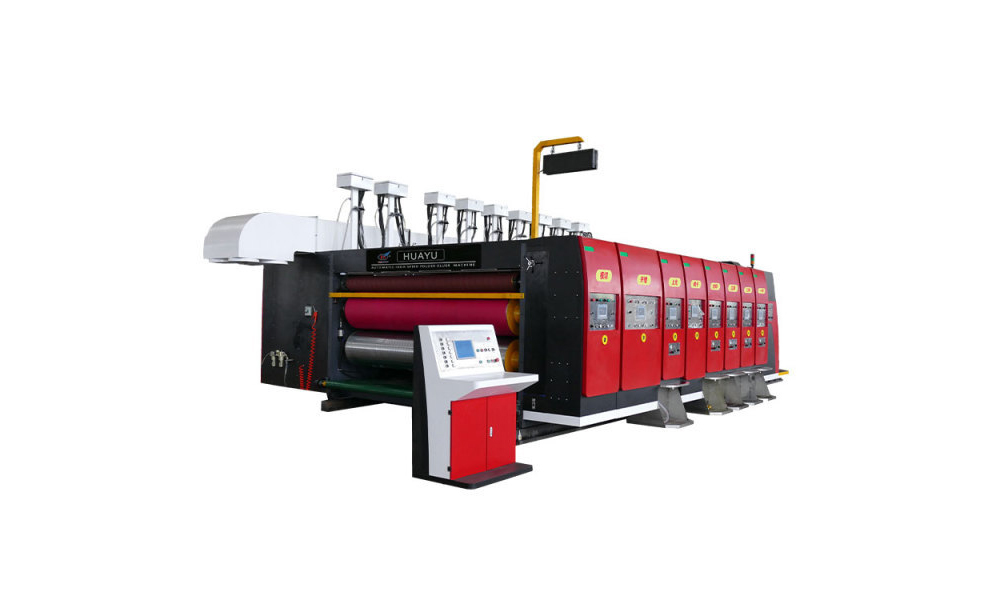

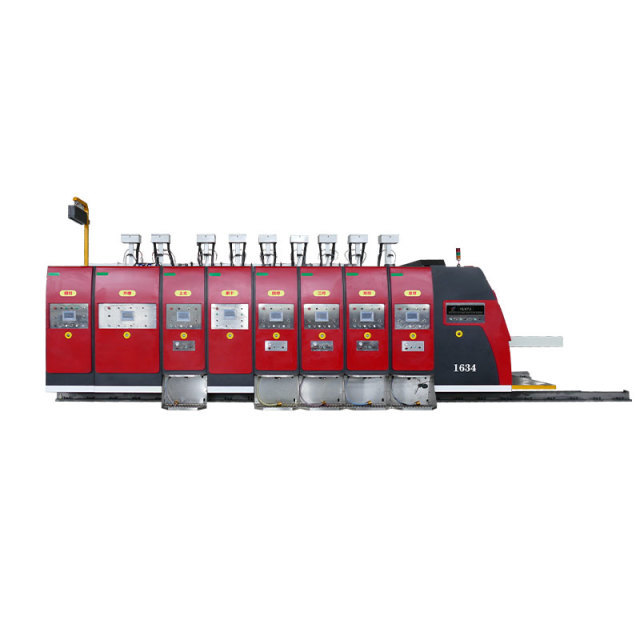

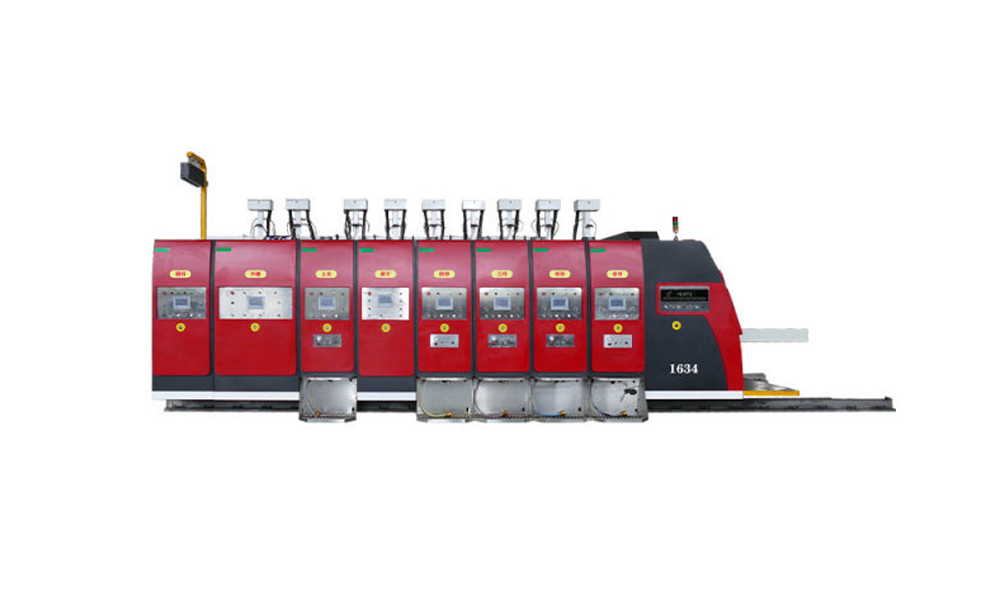

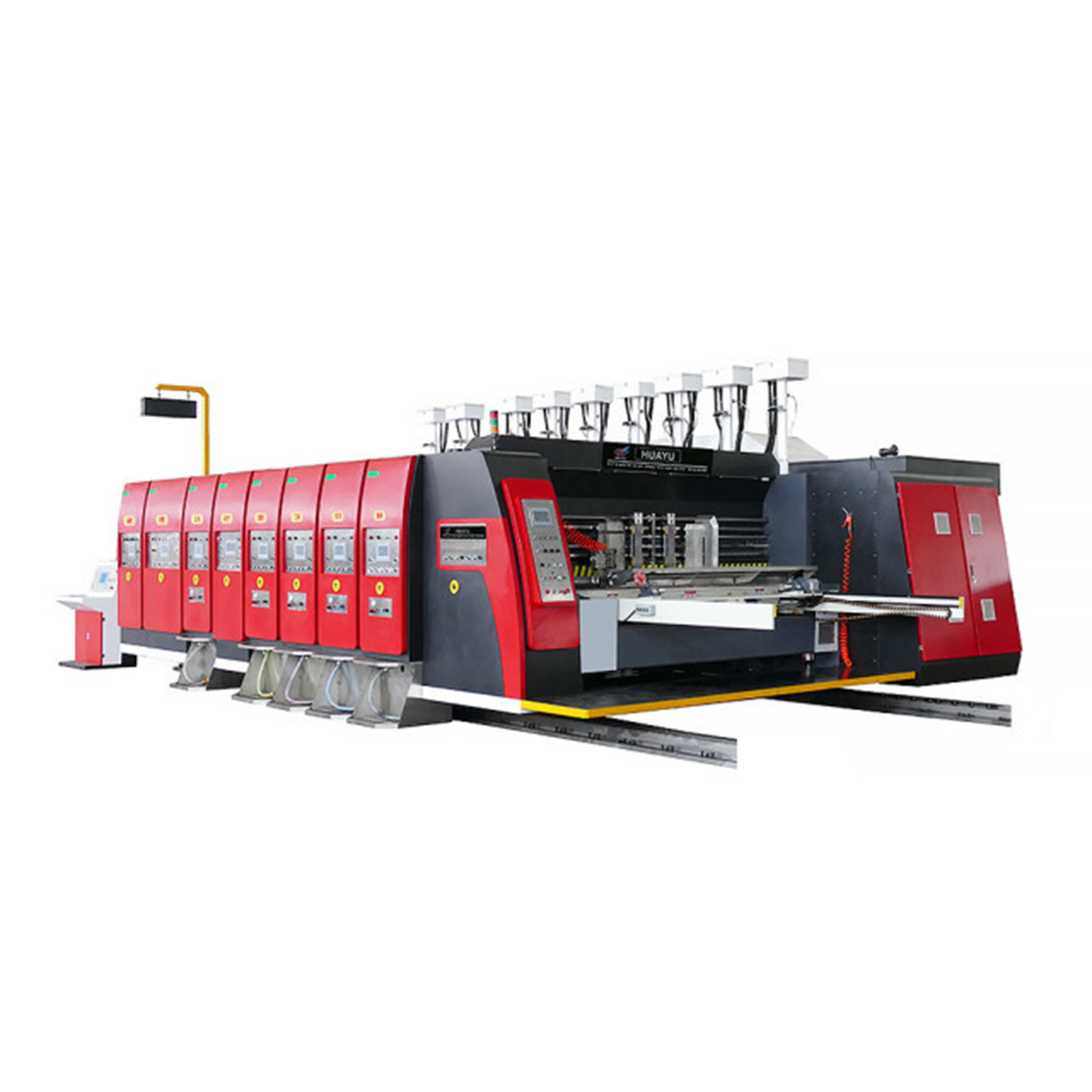

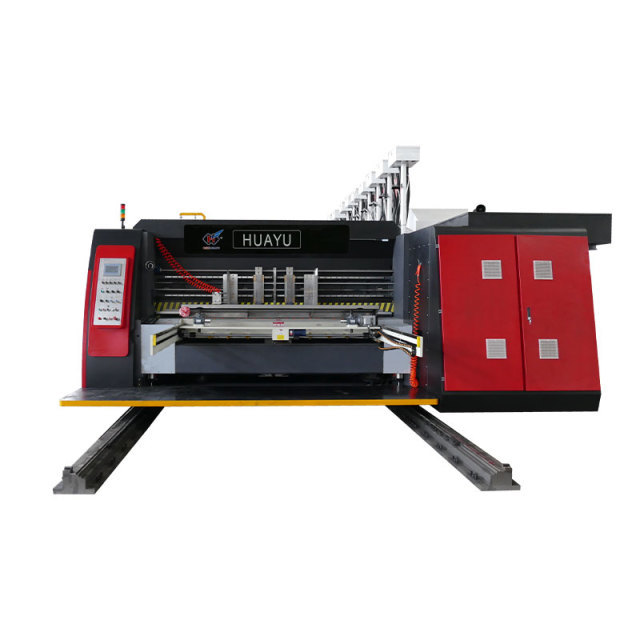

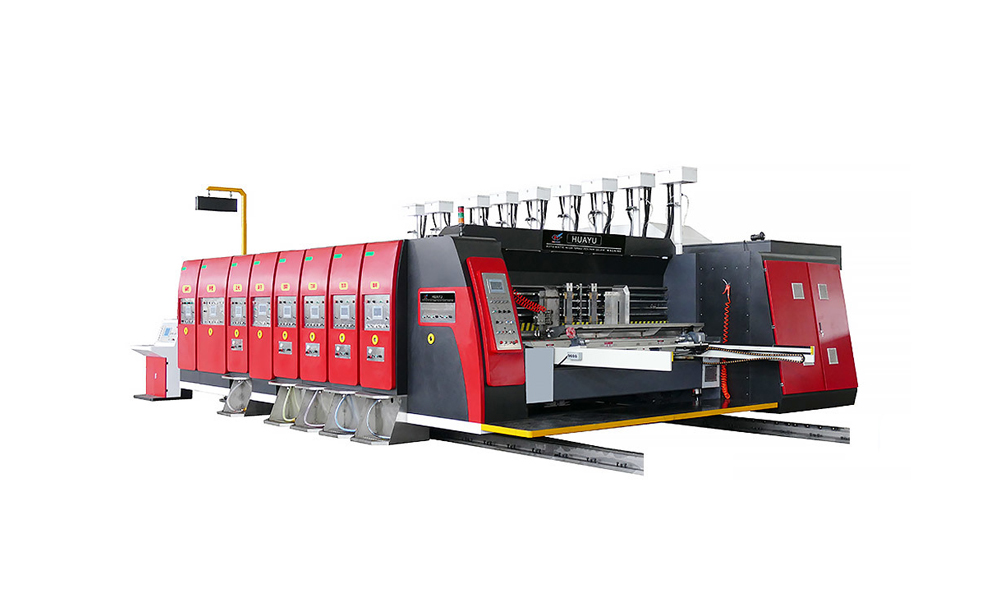

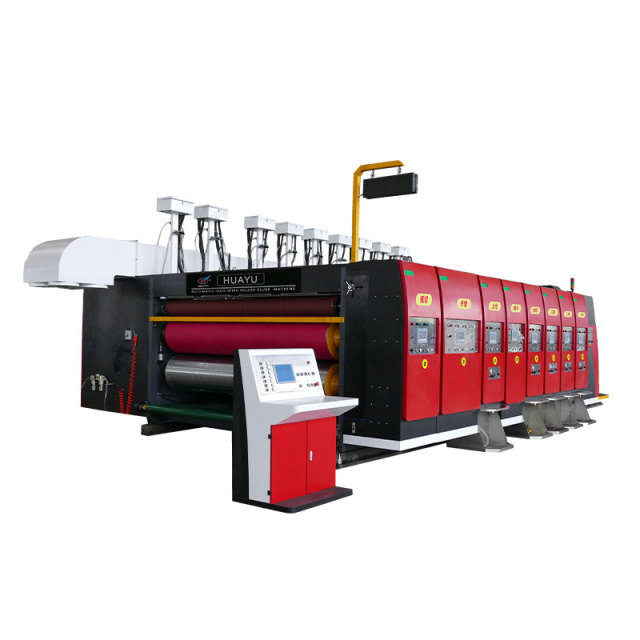

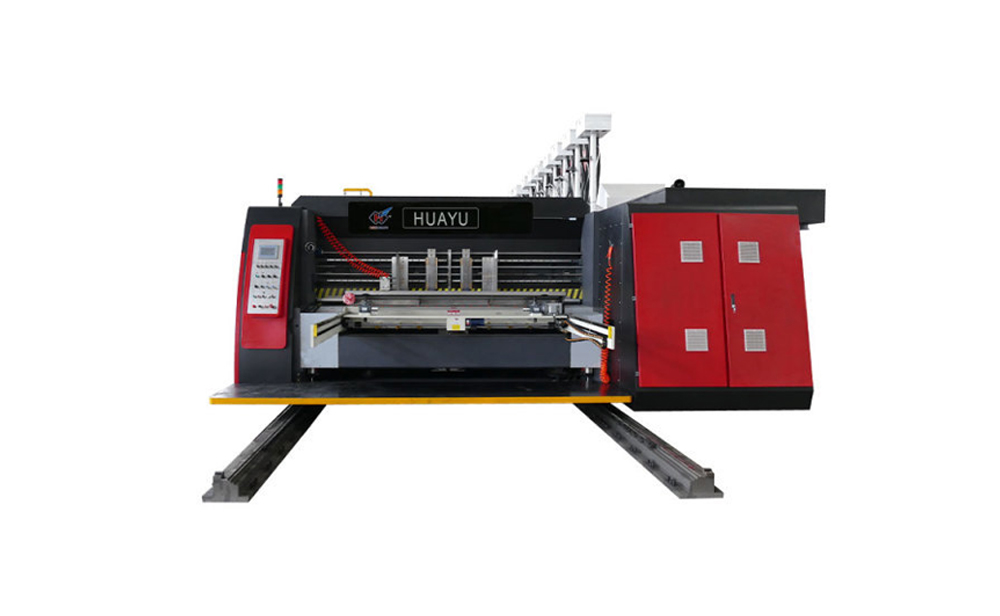

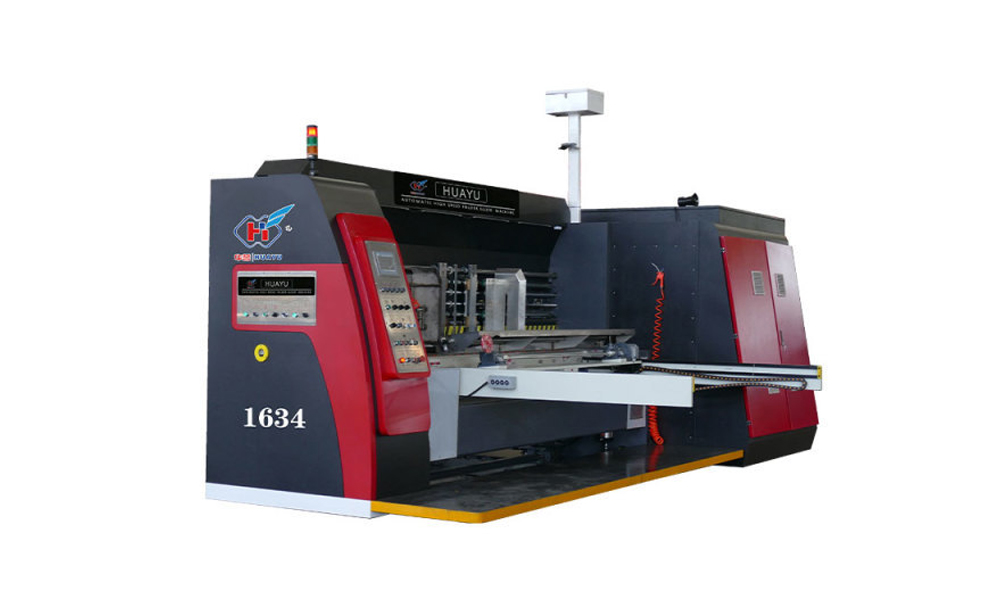

● High-definition corrugated printing machine designed to replace offset printing. Traditional offset requires multiple steps (pre-printing, lamination, pressing, die-cutting) with low efficiency and harmful solvent inks. The HS press completes printing, coating, drying, slotting, and die-cutting in one pass at 200 sheets/min, with high accuracy, efficiency, and eco-friendly ink—ideal for food and beverage packaging.
● Fully automatic control system – enter order size on the touch screen and the feeder, printing, and die-cutting units auto-adjust gaps and parameters with no manual intervention, improving efficiency.
● Job storage & automatic changeover – faster and more convenient order switching.
● Independent unit control with full vacuum transfer feeder, achieving ±0.3mm registration accuracy.
● Network management & optional remote maintenance (internet required).
● Advanced dust removal system with static eliminator, 8-row brush, strong suction, and adhesive roller for clean sheets.
● High-precision alloy steel gears, carburized, quenched, and ground for wear resistance and stability.
● Imported Japanese bearings (THK, NSK, NTN) for durability.
● Global brand electricals – Siemens (Germany), Schneider (France), AirTac (Taiwan).
● Imported ceramic anilox rollers with open doctor blade system.
● 50–133 LPI printing with scraper ink supply, suitable for coated or kraft board.
● Vacuum box with 7.5KW fan & frequency-controlled airflow for smooth feeding of thin, curved, or low-grade cardboard; pneumatic air adjustment for different sheet sizes.
● Coating unit enhances clarity and finish, comparable to offset effects.
● Infrared & UV drying system with temperature control – IR for water-based varnish, UV for UV varnish – ensuring quality at high speed.
● Durable painting process (derusting, phosphating, painting, baking) for rust resistance and surface hardness.
● Large display screen shows speed (sheets/min) and output quantity, easy for monitoring.
● Centralized dust collection & noise reduction, with pulse bag filter available per user needs.
● All electrical, electronic, and pneumatic parts comply with CE standards.
Model | 920S | 1224S | 1424S | 1628S |
Speed | 280 | 250 | 200 | 150 |
Min. Feeding size | 300X560 | 360X680 | 365X680 | 420X680 |
Max. Continuous paper size |
800X2080 |
1160X2480 |
1370X2480 |
1540X2880 |
| Max. Printing size | 860X1960 | 1170X2360 | 1400X2360 | 1580X2760 |
| Suitable cardboard thickness | 2-9 | 2-9 | 2-9 | 2-9 |
Standard printing plate thickness | 7.2 | 7.2 | 7.2 | 7.2 |
Computerized slot spacing | Positive knife 130X130Reserve knife 245X60 | Positive knife 160x160Reserve knife 260x65 | Positive knife 160x160Reserve knife 260x65 | Positive knife 165x165Reserve knife 265x65 |
Max. Die cutter size
| 880X2080 | 1200X2480 | 1420X2480 | 1600X2880 |
| Min . slot box height | 105 | 95 | 90 | 90 |
Max. Slot depth
| 230 | 310 | 365 | 410 |
Printing roll position adjustment
| ±6 | ±6 | ±6 | ±6 |
| Left and right lateraldisplacement of anvil pad | ±20 | ±20 | ±20 | ±20 |
| Die cutter knife height | 25.4 | 25.4 | 25.4 | 25.4 |
| Feeder accuracy | ±1 | ±1 | ±1 | ±1 |
| Printing accuracy | ±0.3 | ±0.3 | ±0.3 | ±0.3 |
| Slotting accuracy | ±1.5 | ±1.5 | ±1.5 | ±1.5 |
Die cutter accuracy
| ±1 | ±1 | ±1 | ±1 |
| Product Display

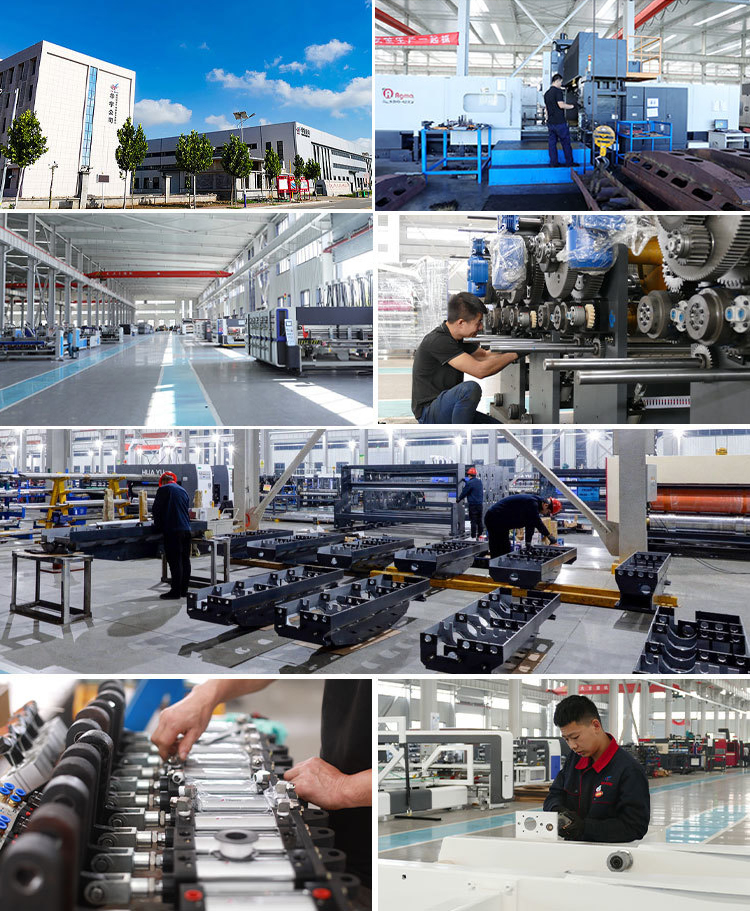

| Production Line
| Hot Sales
| Certificate
The company has been rated as "high-tech enterprise", "Cangzhou enterprise technology center" and "National Science and technology small and medium-sized enterprises". The company has won the honors of "China Quality AAA brand enterprise", "China's key promotion brand of scientific and technological innovation", "trustworthy unit of consumers", "advanced export unit" and "enterprise abiding by contract and trustworthiness".
The company has established a sound quality management system and obtained iso9001:2015 international quality management system certification and EU CE certification.
| Packaging And Shipping
| Huayu Service
QUALITY/QUANTITY DISCREPANCY AND CLAlM
1. ln case the quality and/ or quantity are found by the user to be not in conformity with the contract after arrival of the goods at the port of destination, the user may lodge claim with the seller supported by a survey report issued by an inspection organization agreed upon by both parties, with the exception, however, of those claims for which the insurance company and/or the shipping company are to be held responsible.
2. The claims should be filed by the user within 30 days after the arrival of the goods at the port of destination.
WARRANTIES
1. All the equipment supplied by the seller shall be of good quality, brand new and free of defect, in accordance with design and specification.
2. The warranty period is 1 year after sign the act of acceptance between the seller and user.
3. Duration Of Warranty:
Seller's obligation shall commence on the effective date and continue through the period ending 1 year after sign the act of acceptance. Within the indicated time seller shall make good or replace by his force and on his account defective/worm block, parts or any parts thereof, spare parts which do not allow to normally utilize the equipment and produce amounts intended. Replaced defective parts.
4. Installation Services:
After customer get all machines we will arrange engineers to oversea to install the machine (the specific installation time depends on the local conditions).
5. When there is a problem with the machine or the customer cannot operate the machine, we will immediately give the customer's solution and video to help the customer run the machine.
