● PLC touch screen control with fast, reliable response and data input without stopping.
● Imported belt transmission for wear resistance, anti-slip, high accuracy, and reliability.
● Servo-controlled gluing head tracks production speed to ensure consistent coating without gaps.
● Synchronized with printing machine using variable frequency speed regulation—flexible, stable, and energy-saving.
● Automatic glue supply system with circulating glue to prevent breaks. Stainless steel wheels resist corrosion, apply evenly, and reduce glue waste.
● Electric left/right boom adjustment with automatic data setting and one-click synchronization.
● Electrically adjustable gluing head, supports automatic data adjustment and one-click system-wide setup.
● Belt adjustment device corrects left/right belt asynchrony to eliminate scissor-opening defects.
● Nylon transmission wheels are durable and anti-skid.
● Hardened optical shafts with adjustment ports for easy fine-tuning and long service life.
● Optional waste paper picker ensures smooth entry of small boxes into the folding section (ideal for e-commerce packaging).
● Independent variable-frequency folding section allows precise coordination by box size for smoother production.
● Electric waste cleaning brush reduces corner scrap residue, improving bonding quality.
● Soft rubber roller with elastic pressure provides deviation correction and prevents fishtail defects.
● Automatic counting & stacking via pneumatic system, adjustable by quantity and push timing.
● Electric lifting press ensures proper bonding pressure, preventing loose adhesion.
● Adjustable pressing position adapts to different box specifications.
● Electrically adjustable correction unit moves horizontally to handle box deviation smoothly.
● Independent variable-frequency paper feed & output for speed flexibility by box size and stacking height.
● Electrically adjustable blocking trolley & pressing rollers save time and labor.
Model | 920C | 924C | 1224C |
Min. Folding spacing | 210 | 210 | 210 |
Sheet side | Min130 Max730 |
Min130 Max730 |
Min130 Max730 |
Sheet reverse side |
Min80 Max730 |
Min80 Max730 |
Min80 Max730 |
Folding accuracy | ±2 | ±2 | ±2 |
Min. Feeding height | 210(with vibrator)280(without vibrator) | 210(with vibrator)280(without vibrator) | 210(with vibrator)280(without vibrator) |
Speed | 280 | 280 | 280 |

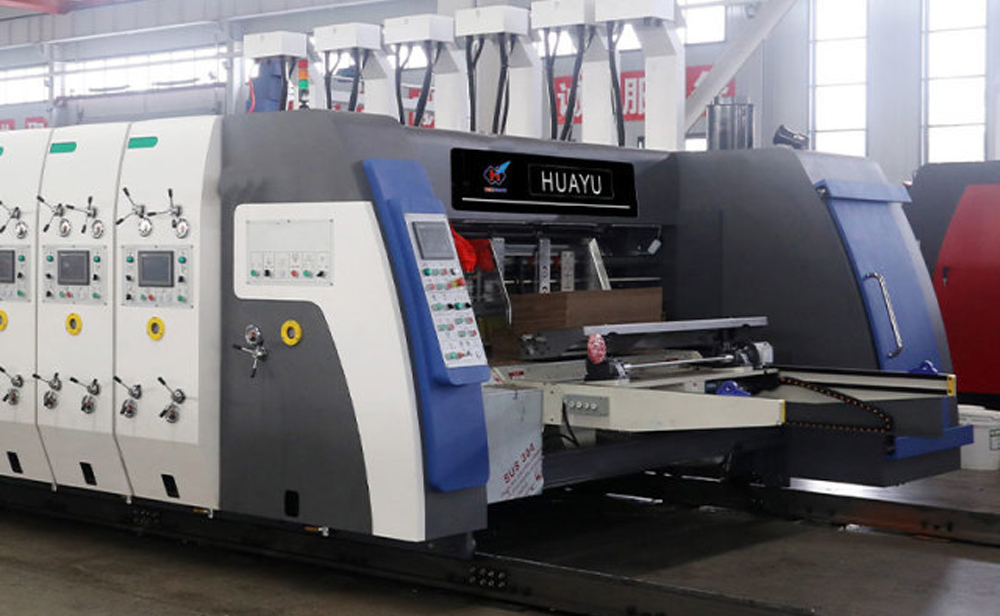

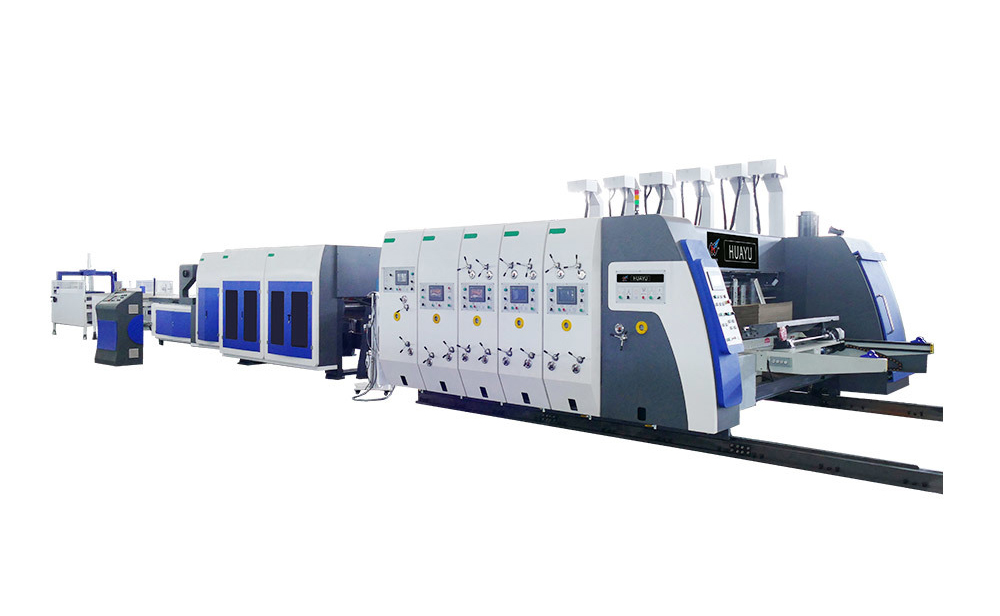

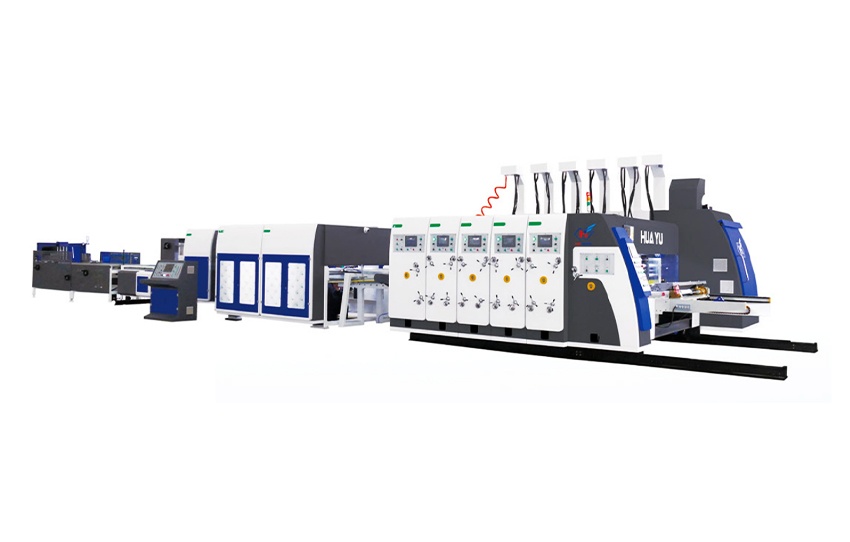

| Product Display

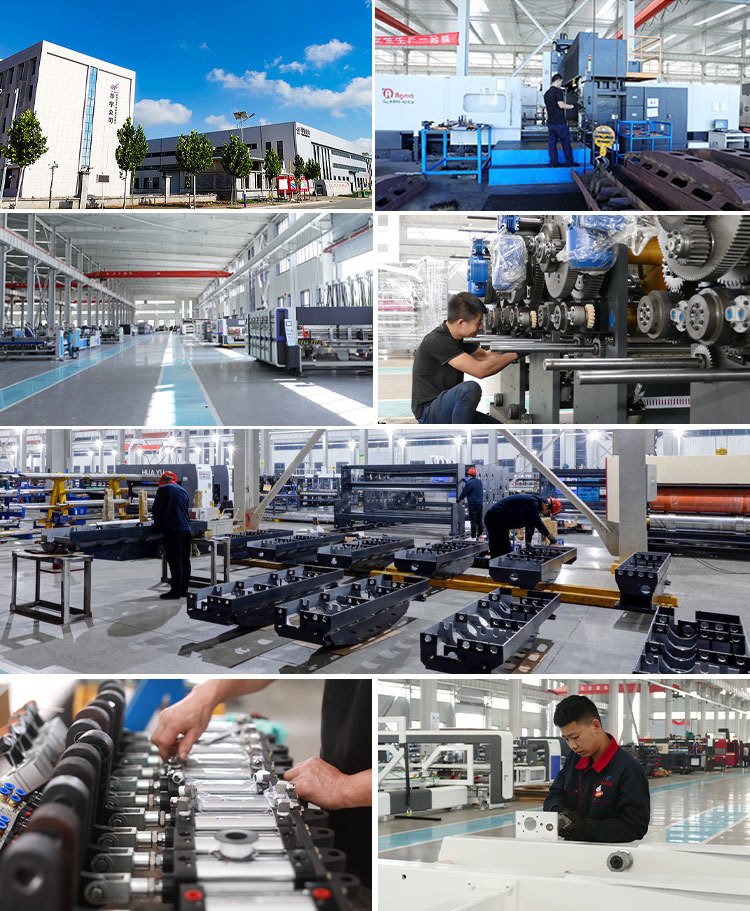

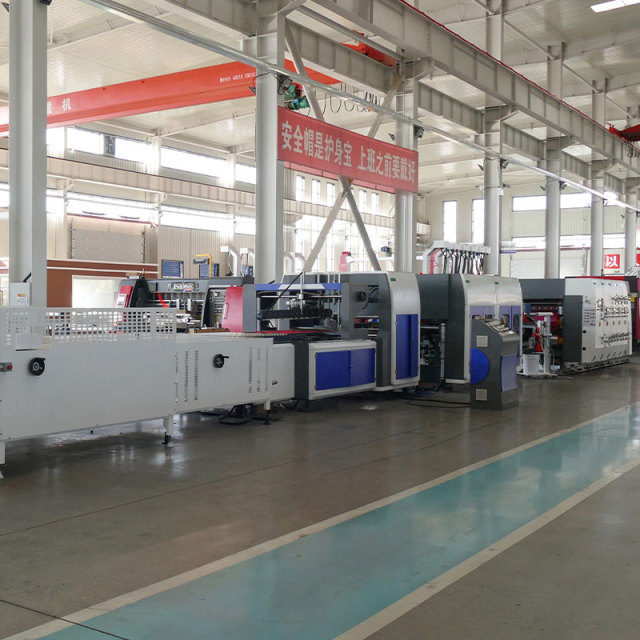

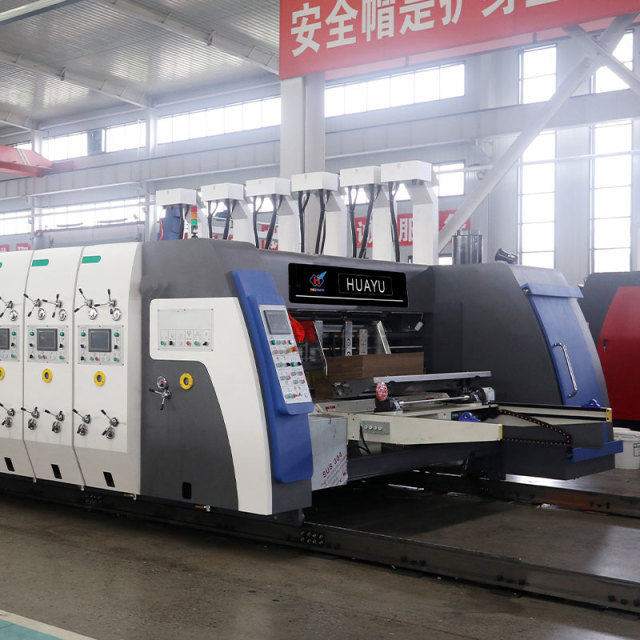

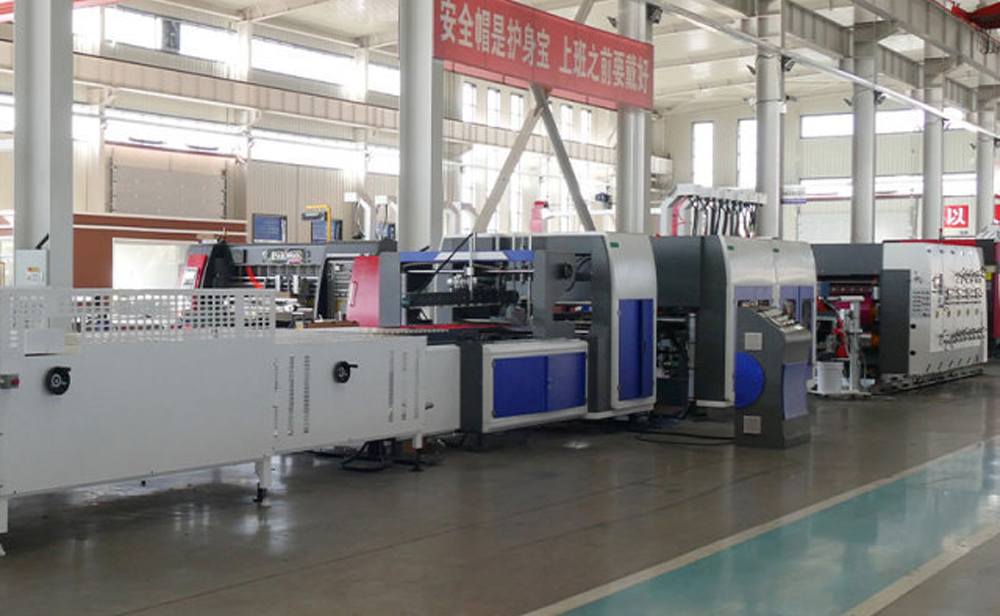

| Production Line

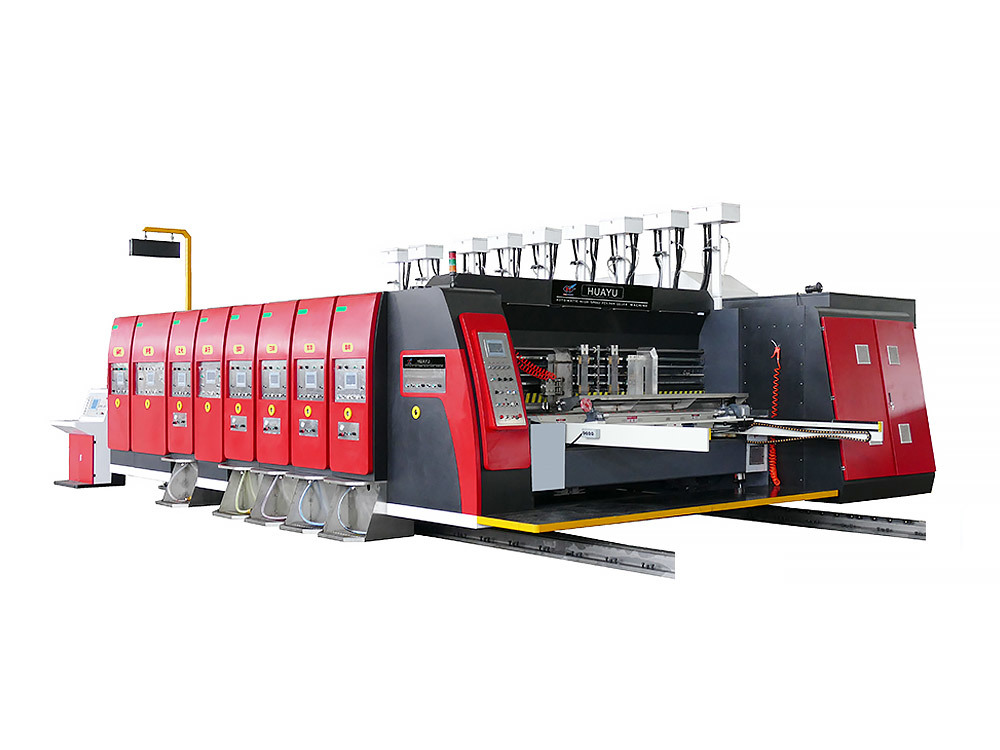

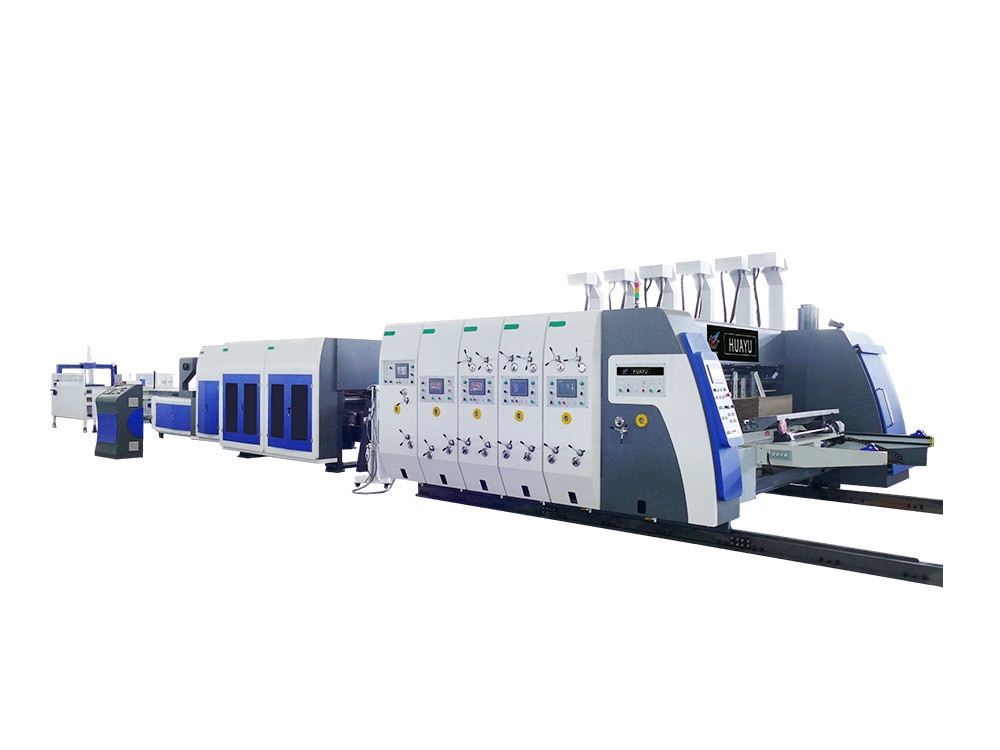

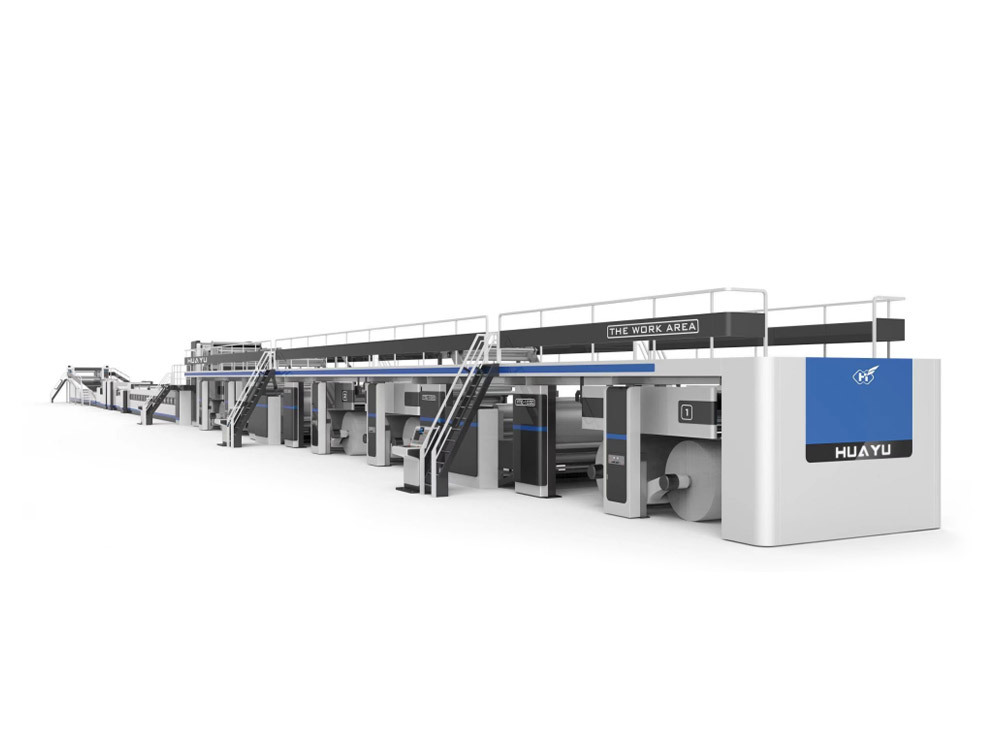

| Hot Sales
| Certificate
The company has been rated as "high-tech enterprise", "Cangzhou enterprise technology center" and "National Science and technology small and medium-sized enterprises". The company has won the honors of "China Quality AAA brand enterprise", "China's key promotion brand of scientific and technological innovation", "trustworthy unit of consumers", "advanced export unit" and "enterprise abiding by contract and trustworthiness".
The company has established a sound quality management system and obtained iso9001:2015 international quality management system certification and EU CE certification.
| Packaging And Shipping
| Huayu Service
QUALITY/QUANTITY DISCREPANCY AND CLAlM
1. ln case the quality and/ or quantity are found by the user to be not in conformity with the contract after arrival of the goods at the port of destination, the user may lodge claim with the seller supported by a survey report issued by an inspection organization agreed upon by both parties, with the exception, however, of those claims for which the insurance company and/or the shipping company are to be held responsible.
2. The claims should be filed by the user within 30 days after the arrival of the goods at the port of destination.
WARRANTIES
1. All the equipment supplied by the seller shall be of good quality, brand new and free of defect, in accordance with design and specification.
2. The warranty period is 1 year after sign the act of acceptance between the seller and user.
3. Duration Of Warranty:
Seller's obligation shall commence on the effective date and continue through the period ending 1 year after sign the act of acceptance. Within the indicated time seller shall make good or replace by his force and on his account defective/worm block, parts or any parts thereof, spare parts which do not allow to normally utilize the equipment and produce amounts intended. Replaced defective parts.
4. Installation Services:
After customer get all machines we will arrange engineers to oversea to install the machine (the specific installation time depends on the local conditions).
5. When there is a problem with the machine or the customer cannot operate the machine, we will immediately give the customer's solution and video to help the customer run the machine.
| Customer Visit

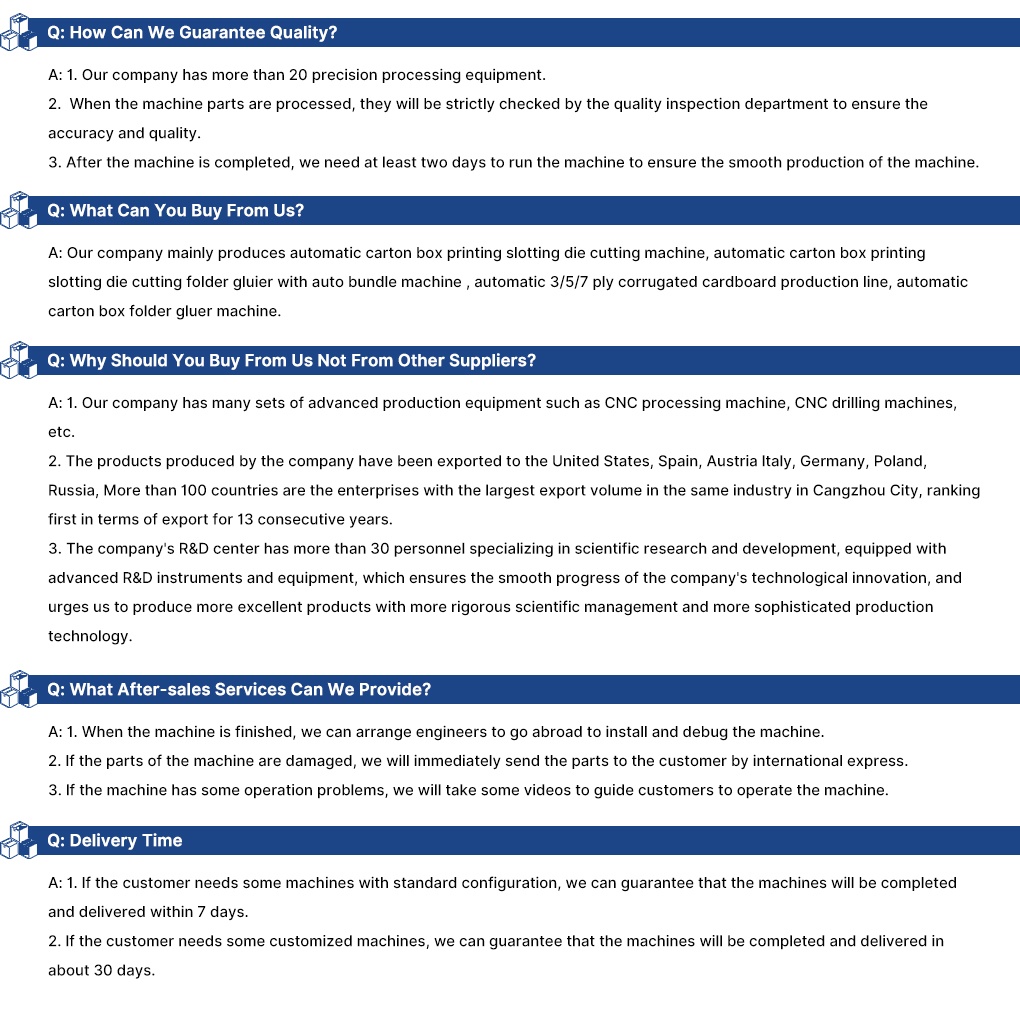

| FAQ
