ZJ-F Shaftless Roll Stand Purpose And Features
1. The structure is four arms with double shafts; both arms support two papermaking rolls at the same time.
2. Disc type manual brake, roll paper tension can be adjusted at any time.
3. The clamp arm and the rotary structure are equipped with a constant torque clutch for safe operation.
4. Maximum roll diameter: φ1400mm.
5. Maximum support weight: 2T.
SF-280S Fingerless Single-sided Machine Purpose And Features
1. Design speed: 80m/min 2.
Effective width: 1400mm-2200mm
3. Corrugating roller: φ280mm 4.
The transmission gearbox adopts oil-immersed lubrication to reduce noise and maintain stable operation. Universal transmission is adopted. separate power supply.
5. Pneumatic adjustment of corrugating roller, pressing roller and glue roller.
6. Cardboard conveying adopts vacuum suction mode, with wind control system.
7. The bearing of the corrugating roller adopts high temperature resistant grease to keep the groove shape of the lower roller stable.
8. Glue parts are automatically circulated for glue supply.
9. The upper and lower corrugating rollers are made of 48CrMo high-quality alloy steel after heat treatment. Hardness HRC58°-60°, the surface is ground.
10. The surface of the rubber part is treated with special texture and chrome plating.
11. Electric glue framing to match paper width

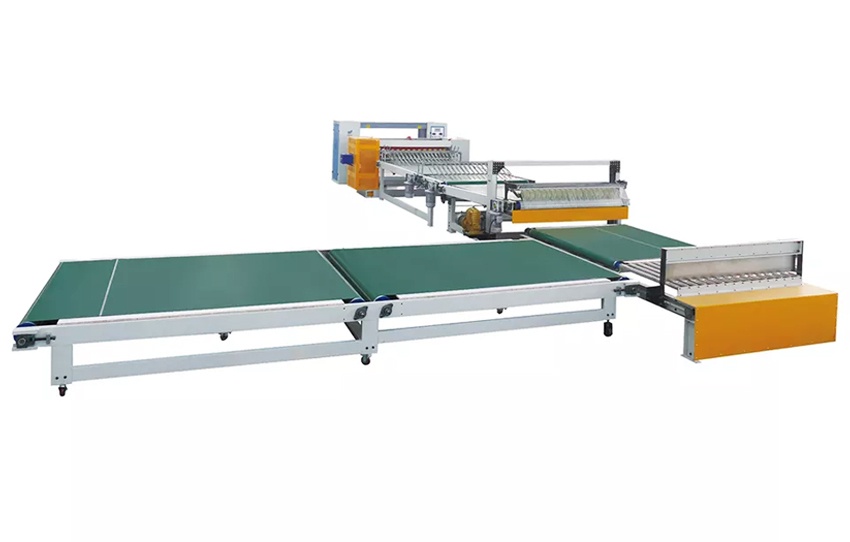

DWQJ Series Cutting Machine
DWQJ series roll paper cutting machine is mainly used to cut the roll paper into the required size of sheet paper. It has the advantages of simple structure, convenient adjustment and long service life.
Uses And Features:
Reasonable structure, easy operation and low noise.
With four cutting knives, cross cutting 400mm-2400mm.
Paper cutting accuracy ±2.5mm
Note: roll paper trolley included
Note: Glue tank is included for glue mixing.
Size: 1200 / 1400 / 1600 / 1800 / 2000
Voltage | 440V |
Power | 40KW |
Dimension(L*W*H) | 1800 |
Weight | 75000 kg |
Warranty | 1 Year |
Production Capacity | 60 Pcs/Min |
Machinery Test Report | Provided |
Video Outgoing-inspection | Provided |
Warranty Of Core Components | 6 Months |
Core Components | PLC, Pressure Vessel, Motor |
After Warranty Service | Video Technical Support |
Certification | CE |

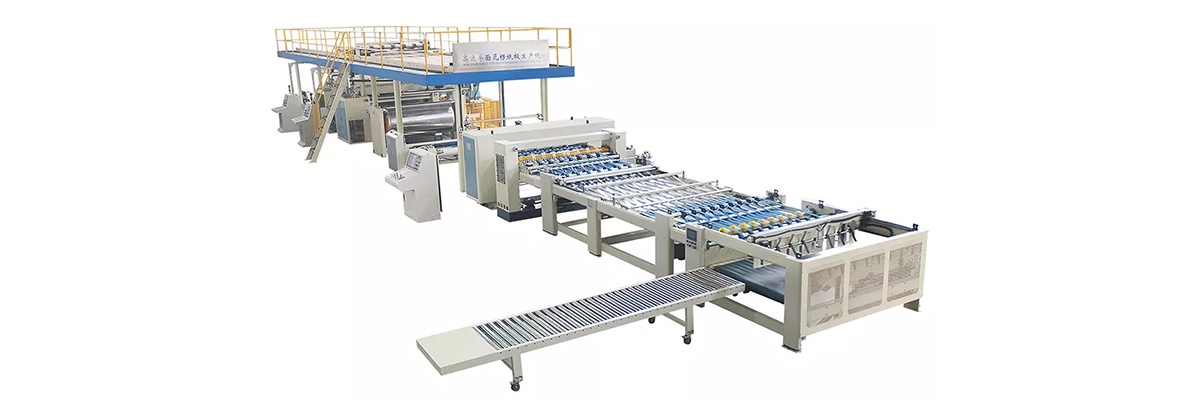

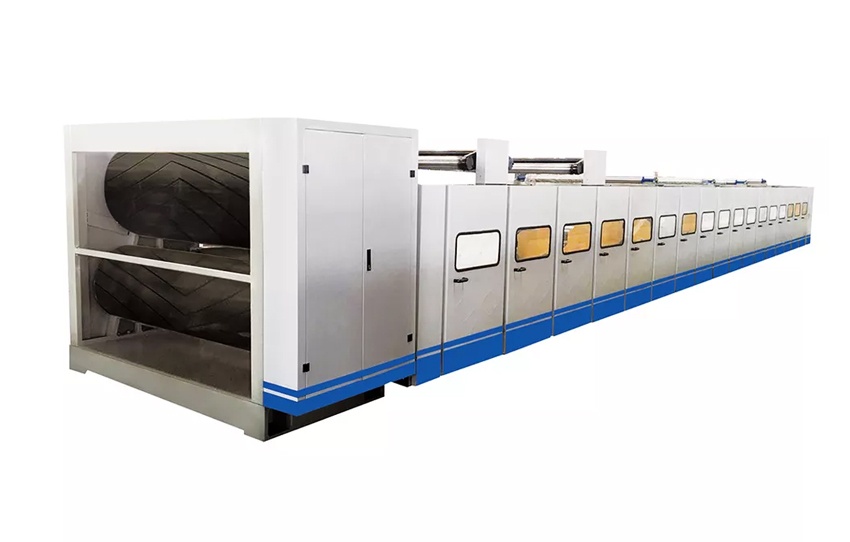

| Product Display

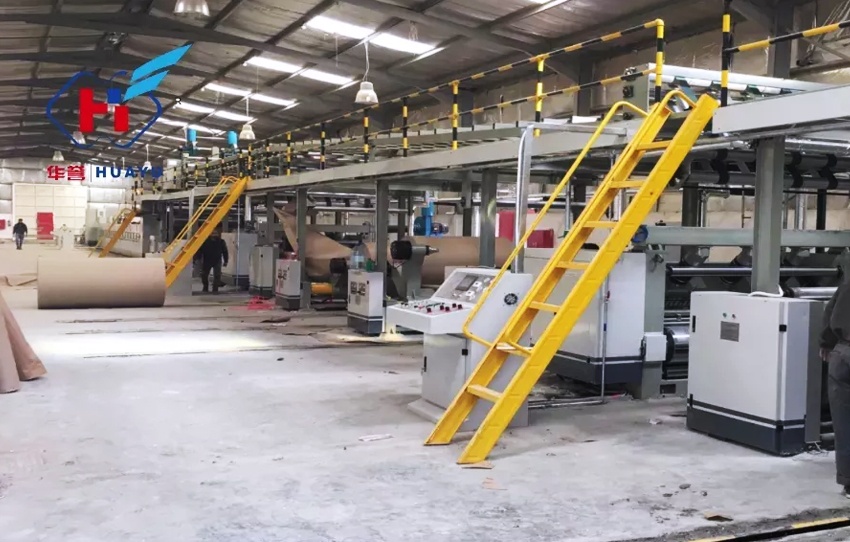

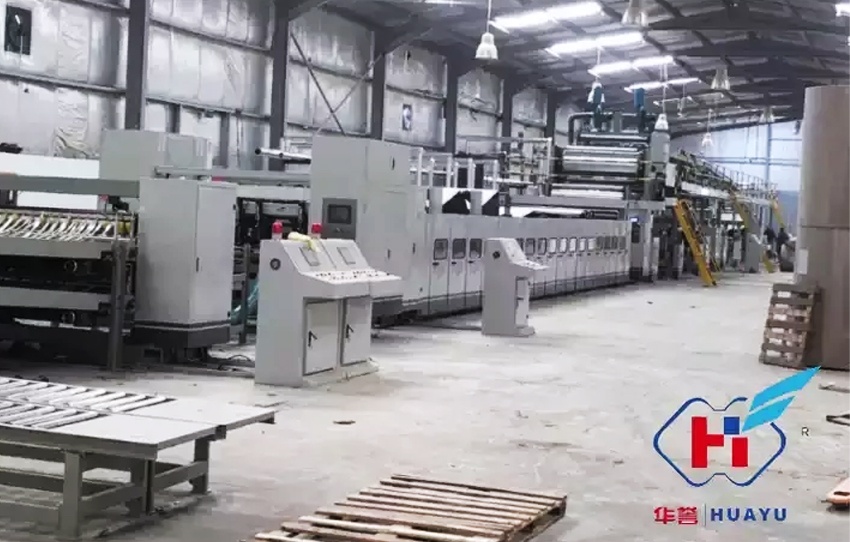

| Production Line
| Hot Sales
| Certificate
The company has been rated as "high-tech enterprise", "Cangzhou enterprise technology center" and "National Science and technology small and medium-sized enterprises". The company has won the honors of "China Quality AAA brand enterprise", "China's key promotion brand of scientific and technological innovation", "trustworthy unit of consumers", "advanced export unit" and "enterprise abiding by contract and trustworthiness".
The company has established a sound quality management system and obtained iso9001:2015 international quality management system certification and EU CE certification.
| Packaging And Shipping
| Huayu Service
QUALITY/QUANTITY DISCREPANCY AND CLAlM
1. ln case the quality and/ or quantity are found by the user to be not in conformity with the contract after arrival of the goods at the port of destination, the user may lodge claim with the seller supported by a survey report issued by an inspection organization agreed upon by both parties, with the exception, however, of those claims for which the insurance company and/or the shipping company are to be held responsible.
2. The claims should be filed by the user within 30 days after the arrival of the goods at the port of destination.
WARRANTIES
1. All the equipment supplied by the seller shall be of good quality, brand new and free of defect, in accordance with design and specification.
2. The warranty period is 1 year after sign the act of acceptance between the seller and user.
3. Duration Of Warranty:
Seller's obligation shall commence on the effective date and continue through the period ending 1 year after sign the act of acceptance. Within the indicated time seller shall make good or replace by his force and on his account defective/worm block, parts or any parts thereof, spare parts which do not allow to normally utilize the equipment and produce amounts intended. Replaced defective parts.
4. Installation Services:
After customer get all machines we will arrange engineers to oversea to install the machine (the specific installation time depends on the local conditions).
5. When there is a problem with the machine or the customer cannot operate the machine, we will immediately give the customer's solution and video to help the customer run the machine.
